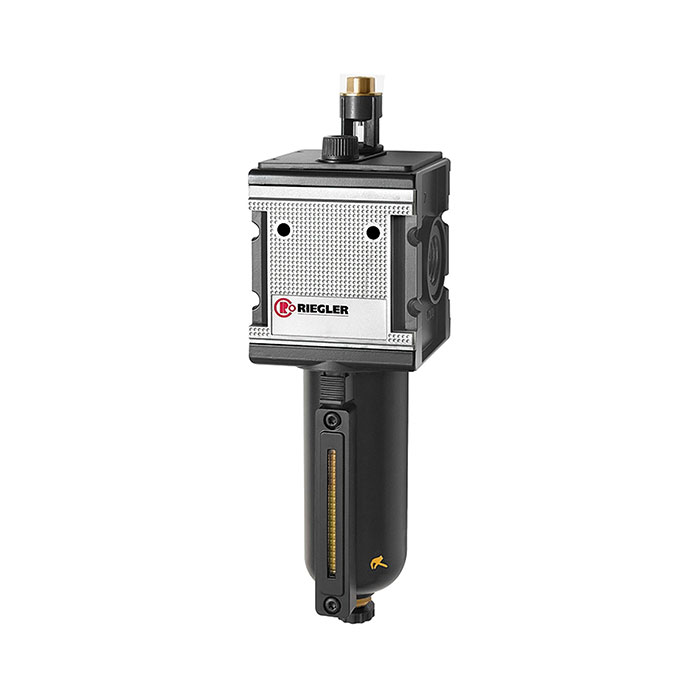

RIEGLER Mist oiler »multifix«, with metal container, Size 4, G 3/4
Type number: L 44 M-SR
EAN: 4047322476102
Nebelöler »multifix« mit Metallbehälter, Sichtrohr, Tropfaufsatz Metall, BG 4, G 3/4, PE max. 20 bar, Med.-Umgeb.temp. max. 60 °C
| Inlet pressure max. | 20 bar |
| Housing | Die-cast aluminum |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | multifix |
| Container | Metal container with sight tube |
| Dropper attachment | Zink-Glas-NBR |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/4 |
| Flow rate | 14000 l/min |
| DN | 20 |
| BG | 4 |
| A | 85 mm |
| B | 268 mm |
| C | 86 mm |
| D | 182 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
