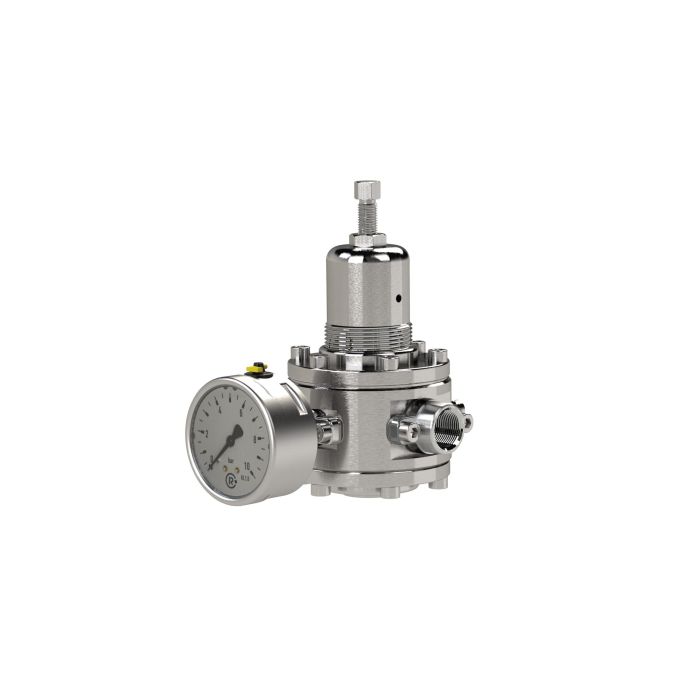

RIEGLER Edelstahl-Druckregler, 1.4404, rücksteuerbar, G 1/2, 0,5 - 8 bar
Type number: DRES.G12R.05-8B
EAN: 4047322729697
Product no. :
129270Category :
Pressure RegulatorsEdelstahl-Druckregler, 1.4404, mit Sekundärentlüftung (rücksteuerbar), inkl. Mano., G 1/2, Regelber. 0,5 - 8 bar, PE max. 50 bar
| A | 109 mm |
| B | 160 mm |
| C | 39 mm |
| Sealing material | FKM |
| Durchfluss_1 | 2800 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 50 bar |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1/2 |
| Class name | STAINLESS STEEL |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -20 °C |
| Membrane | PTFE on NBR carrier |
| Control range max. | 8 bar |
| Control range min. | 0.5 bar |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
