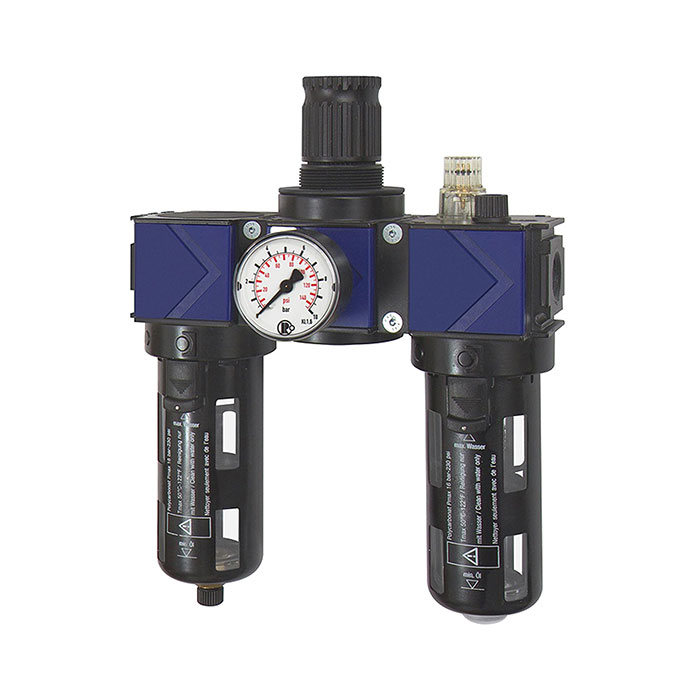

RIEGLER Service unit 3-part »variobloc«, Protective cage, Size 2, G 1
Type number: VW 16 S
EAN: 4047322398404
Wartungseinheit 3-tlg. »variobloc«, Polycarbonatbehälter und Schutzkorb, BG 2, G 1, PE max. 16 bar, Med.-Umgeb.temp. max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Dropper attachment | PA |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 1 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 264 mm |
| B | 274 mm |
| C | 98 mm |
| Class name | PLUS |
