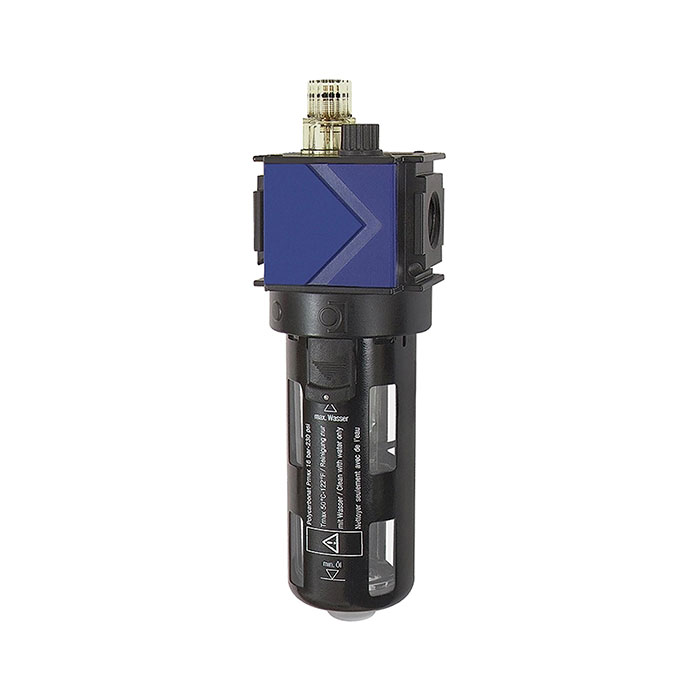

RIEGLER Mist oiler »variobloc«, PC container, Protec. cage, Size 2, G 3/4
Type number: VN 25 S
EAN: 4047322398213
Nebelöler »variobloc« mit Polycarbonatbehälter und Schutzkorb, BG 2, G 3/4, PE max. 16 bar, Mediums-Umgebungstemperatur max. 50 °C
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Thread | G 3/4 |
| Flow rate | 7500 l/min |
| BG | 2 |
| A | 70 mm |
| B | 224 mm |
| C | 57 mm |
| Class name | PLUS |
