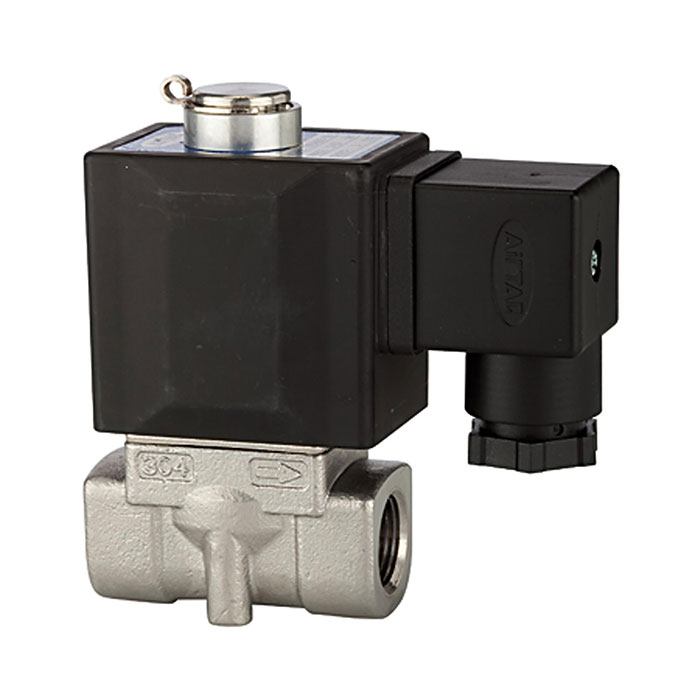

2/2-way solenoid valve NO, directly operated, 230 V, 50 Hz
Typennummer: MVH 1523 ES
EAN: 4047322324014
2/2-Wege-Magnetventil, Edelstahl, NO, direktgesteuert, 230 V, 50 Hz, Mediumstemp. max. 80 °C / 90 °C, G 3/8, PN 0 - 20 bar
| Housing | Edelstahl 1.4301 |
| Sealing material | FPM |
| Protection class | IP 65 |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 20 bar |
| Interior parts | Edelstahl |
| Valve seat | Edelstahl 1.4301 |
| Thread | G 3/8 |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| NW | 3 |
| Design | 2 |
| A | 85 mm |
| B | 52 mm |
| C | 92 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Class name | EDELSTAHL |
