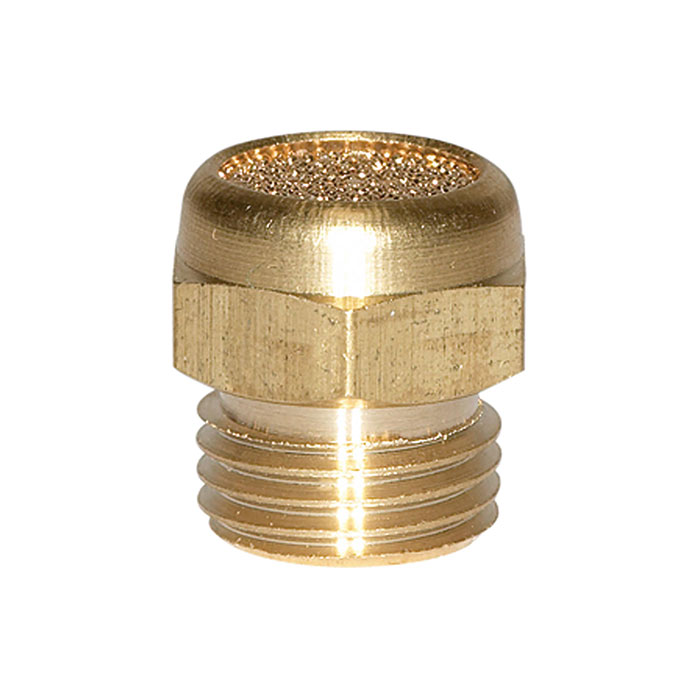

RIEGLER Sintered bronze silencer »value line« flat, Hexagonal, G 1/2
Type number: 569-4-E
EAN: 4047322227100
Sinterbronce-Schalldämpfer »value line« flach, Sechskant/Gewinde MS, G 1/2, Betriebsdr. max. 10 bar, Betriebstemp. -10°C bis 200°C
| Max. operating pressure | 10 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 200 °C |
| Noise level at 6 bar | 80 - 90 dB |
| Thread | G 1/2 |
| SW | 24 mm |
| A | 9.5 mm |
| B | 18 mm |
| C | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Class name | EASY |
