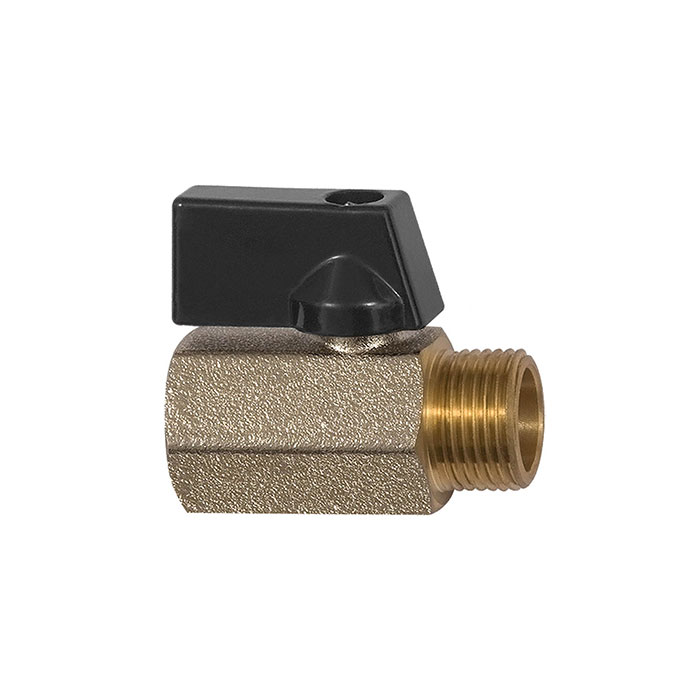

RIEGLER Mini ball valve »valve line«, nickel-plated brass, G 3/8 IT/ET
Type number: 373.22-E
EAN: 4047322229074
Mini-Kugelhahn »valve line«, MS vern., Drehgriff, Mediums-/ Umgebungstemp. -10 °C bis 90 °C, G 3/8 IG/AG, DN 10, PN max. 10 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 90 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 90 °C |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Rotary handle | Aluminum |
| Thread | G 3/8 IG/AG |
| DN | 10 |
| SW | 20 mm |
| B | 28 mm |
| L | 40.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Thread material | Brass bright |
| Class name | EASY |
