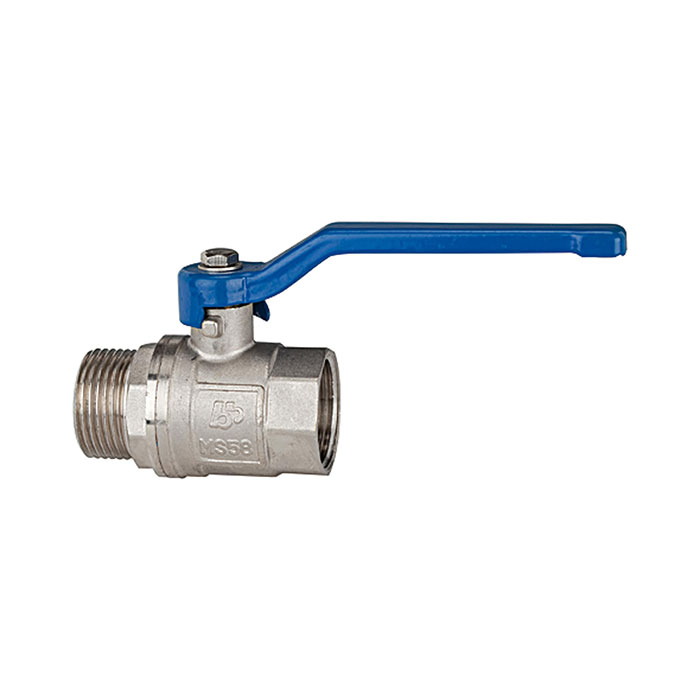

RIEGLER Ball valve »valve line«, Hand lever blue, IT/ET, G 2
Type number: 335.09-E
EAN: 4047322074377
Kugelhahn »valve line«, Handhebel blau, Messing vernickelt, IG/AG, G 2, DN 50, Betriebstemp. -20 °C bis 120 °C, PN max 25 bar
| Housing | Nickel-plated brass |
| Max. operating pressure | 25 bar |
| Ball | Nickel-plated brass |
| Ball seal | PTFE |
| Spindle seal | NBR |
| Hand lever | Steel Q235-A (1.0038) with blue PVC coating |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 120 °C |
| Thread | G 2 |
| DN | 50 |
| Thread standard | G-Gewinde nach DIN EN ISO 288-1 |
| A | 160 mm |
| B | 79 mm |
| L | 111 mm |
| C Ø | 45 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Nickel-plated brass |
| Class name | EASY |
