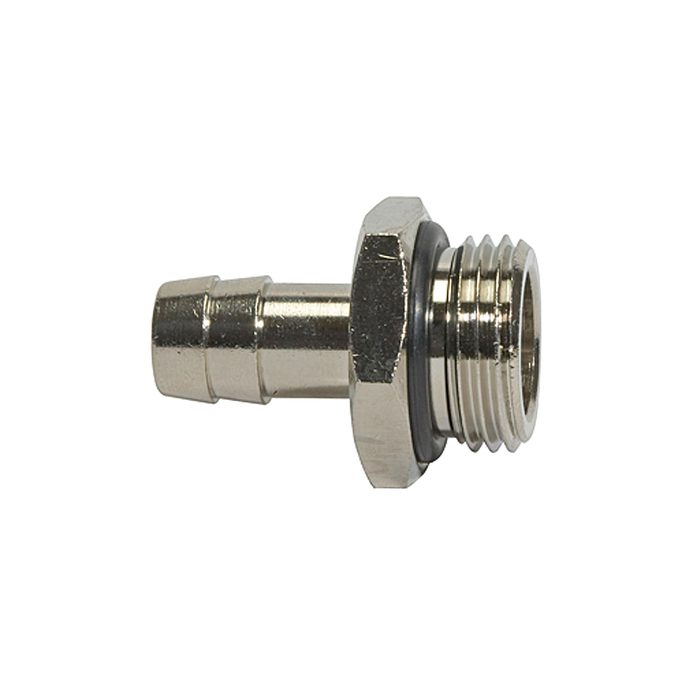

RIEGLER Screw-in hose connector, O-ring »value line«, G 1/4, hose I.D. 9
Type number: 239.507-E
EAN: 4047322184557
Einschraubschlauchtülle, O-Ring »value line«, G 1/4, f. Schlauch LW 9, Betriebsdr. max. 60 bar, Betriebstemp. max. 80 °C, MS vern.
| Sealing material | NBR (O-ring) |
| Max. operating pressure | 60 bar |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 |
| SW | 17 mm |
| for hose | LW 9 mm |
| L1 | 32 mm |
| L2 | 8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
