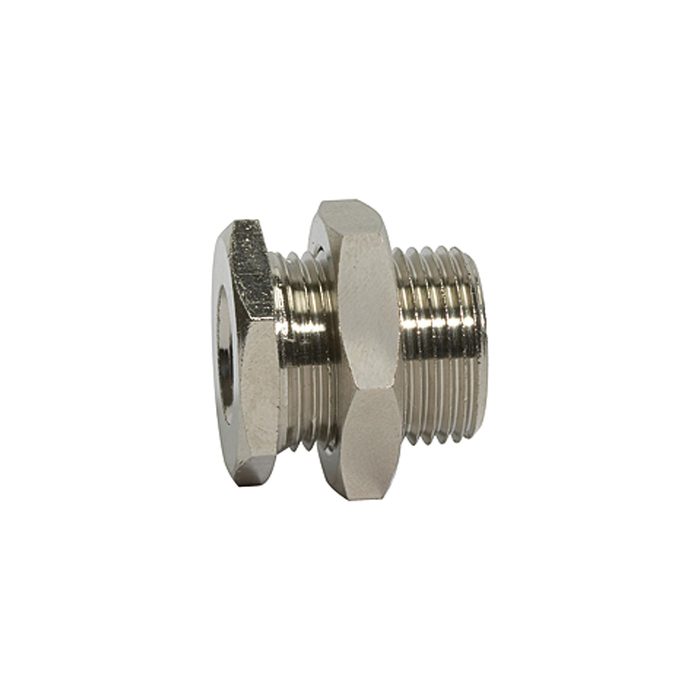

RIEGLER Bulkhead fitting »value line«, M16x1.5 o., G 1/8 i.
Type number: 232.01-N-E
EAN: 4047322184267
Schottverschraubung »value line«, M16x1,5 a., G 1/8 i., Betriebsdruck max. 60 bar, Betriebstemp. max. 150 °C, Messing vernickelt
| Max. operating pressure | 60 bar |
| Operating temperature max. | 150 °C |
| SW 1 | 19 mm |
| SW 2 | 22 mm |
| L1 | 18 mm |
| L2 | 14 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Internal thread | G 1/8 |
| External thread | M16x1.5 |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617 |
| Class name | PLUS |
