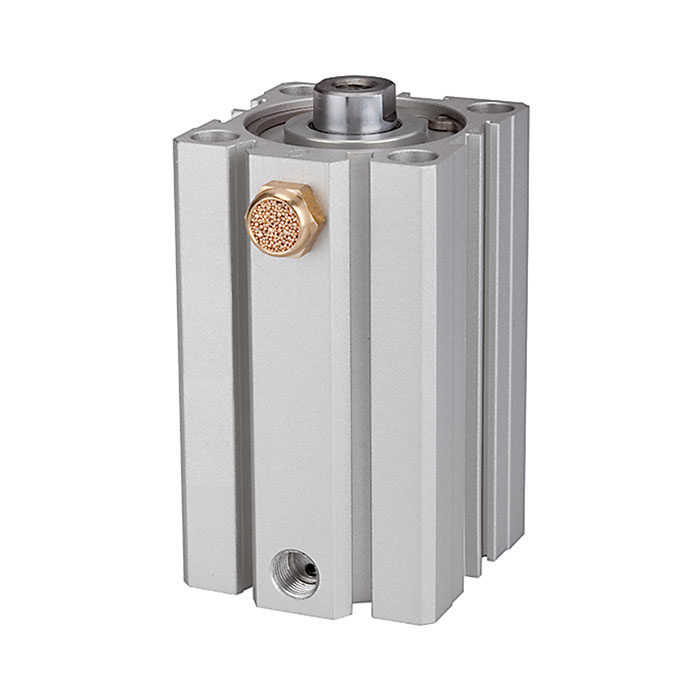

RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 5, G 1/4
Type number: 12.EM.50005
EAN: 4047322328982
Kurzhubzylinder »ASQ« einfachwirkend, Magnet, IG, Kolben-Ø 50, Hub 5, Anschluss G 1/4, Arbeitsdr. 2-10 bar, Temp. -20°C bis 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Serie ASQ |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 50 mm |
| Design | 6 |
| Function | einfachwirkend |
| Stroke | 5 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | Stahl, hartverchromt |
| Piston | Aluminium |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
