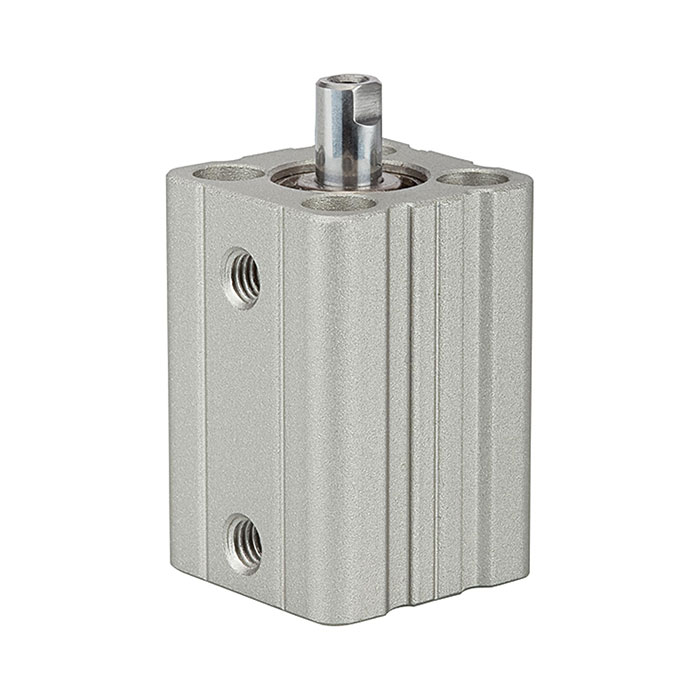

RIEGLER Short stroke cyl., double-acting, Piston Ø 12, Stroke 25, M5x0,8
Type number: 12.DMI.12025
EAN: 4047322317382
Kurzhubzylinder »ACQ« doppeltwirkend, Magnet, IG, Kolben-Ø 12, Hub 25, Anschluss M5x0,8, Arbeitsdr. 1-10 bar, Temp. -20°C bis 70°C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Serie ACQ |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 12 mm |
| Design | 1 |
| Function | doppeltwirkend |
| Stroke | 25 mm |
| Piston rod Ø | 6 mm |
| Piston rods IG | M3x0.5 |
| Connection | M5x0.8 |
| Piston rod | Stahl, hartverchromt |
| Piston | Messing |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
