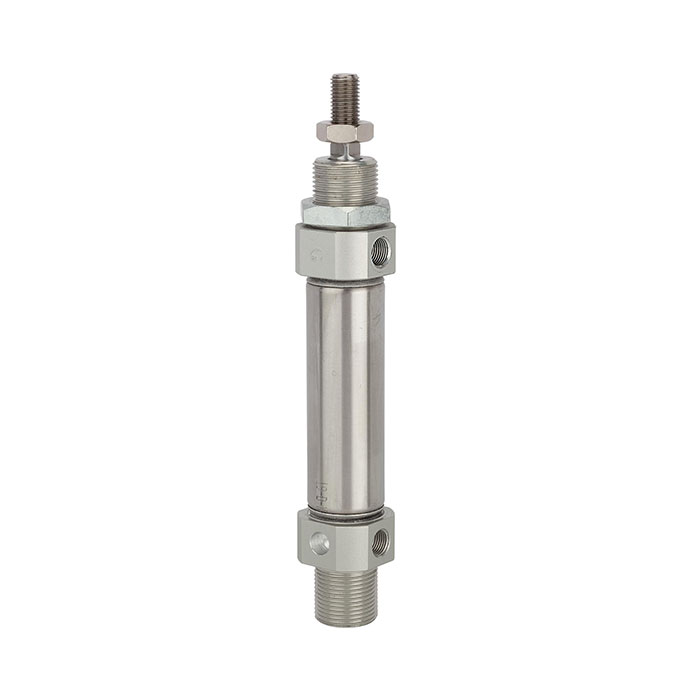

RIEGLER Round cylinder »MI«, double-acting, Piston Ø 40, Stroke 80, G 1/4
Type number: 11.DM.40080
EAN: 4047322315067
Rundzylinder »MI«, doppeltwirkend, Magnet, Kolben-Ø 40, Hub 80, Anschluss G 1/4, Arbeitsdr. 1 - 10 bar, Temp. -20 °C bis 70 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | Serie MI |
| Working pressure min. | 1 bar |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Type | Typ CM |
| Piston Ø | 40 mm |
| Function | doppeltwirkend |
| Stroke | 80 mm |
| Piston rods AG | M12x1.25 |
| Piston rod Ø | 16 mm |
| Connection | G 1/4 |
| Piston rod | Edelstahl 1.4301 |
| Piston | Aluminium |
| Class name | EASY |
| Magnet | with magnet |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
