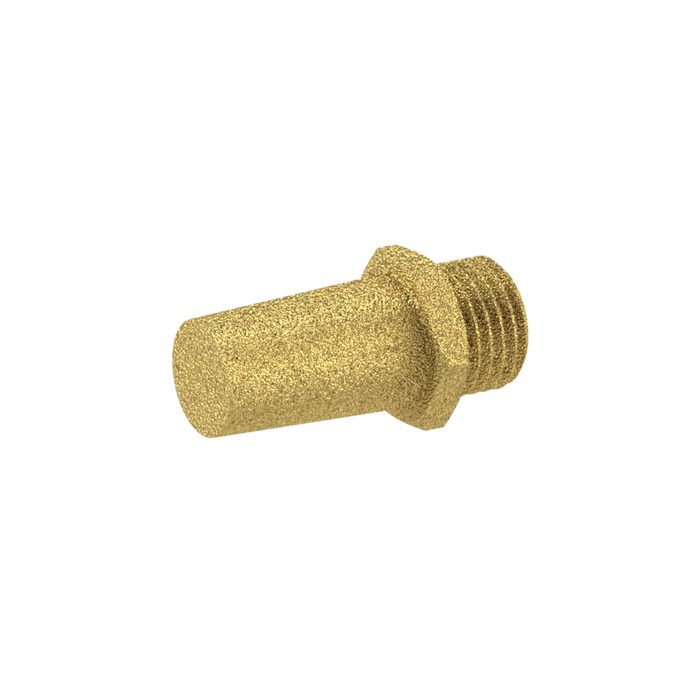

RIEGLER Sintered bronze silencer, Hexagonal, G 1/8, AF 13
Typennummer: 567-1
EAN: 4047322101141
Sinterbronce-Schalldämpfer, Sechskant, G 1/8, SW 13 mm, Betriebsdruck 0 - 8 bar, Betriebstemperatur -10 °C bis 250 °C
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Material | Sintered bronze |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71 - 108 dB |
| Thread | G 1/8 |
| Flow rate at 6 bar | 1200 l/min |
| SW | 13 mm |
| A | 6 mm |
| B | 28 mm |
| C | 8 mm |
| Execution | with hexagon |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Pore size max. | 50 µm |
| Class name | PLUS |
