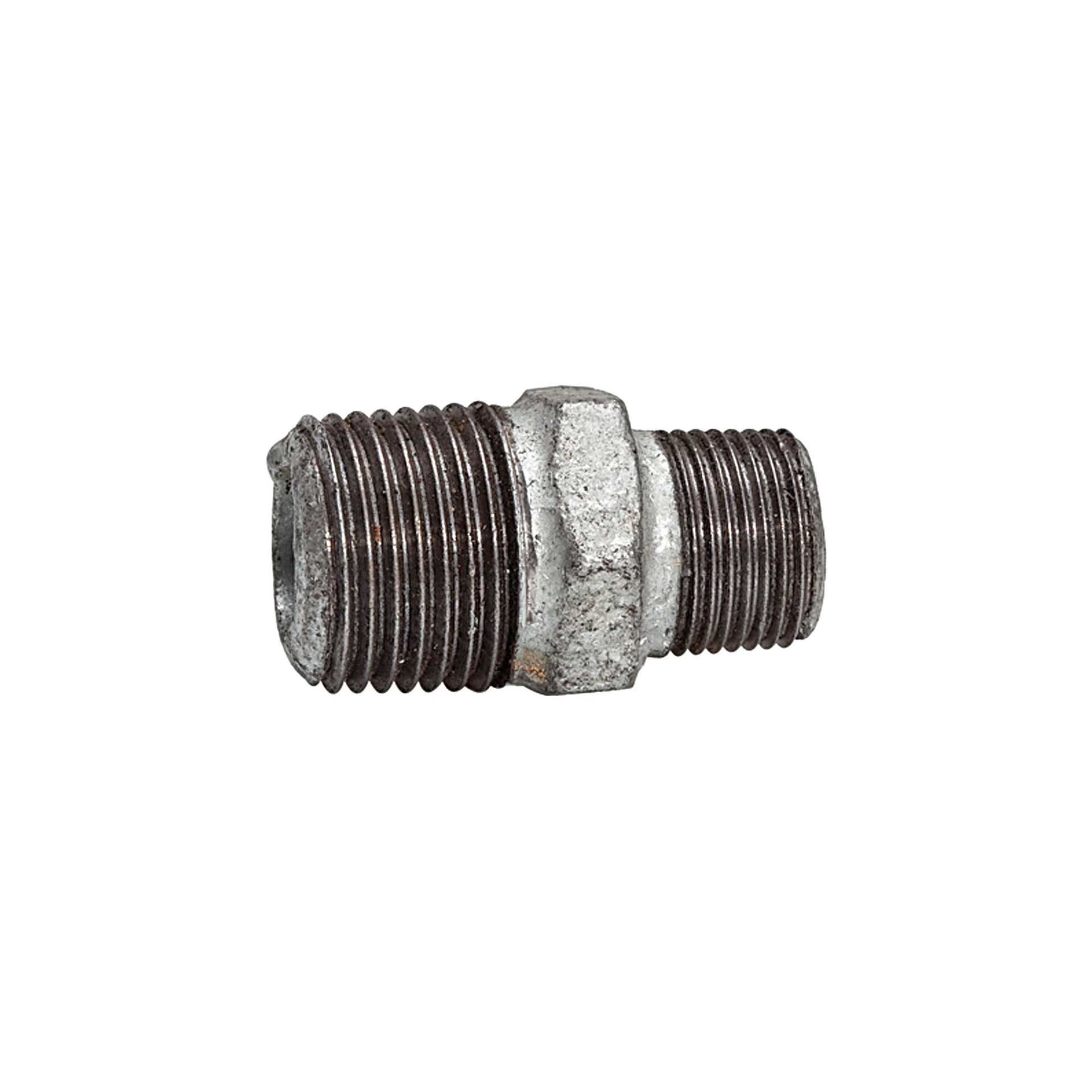

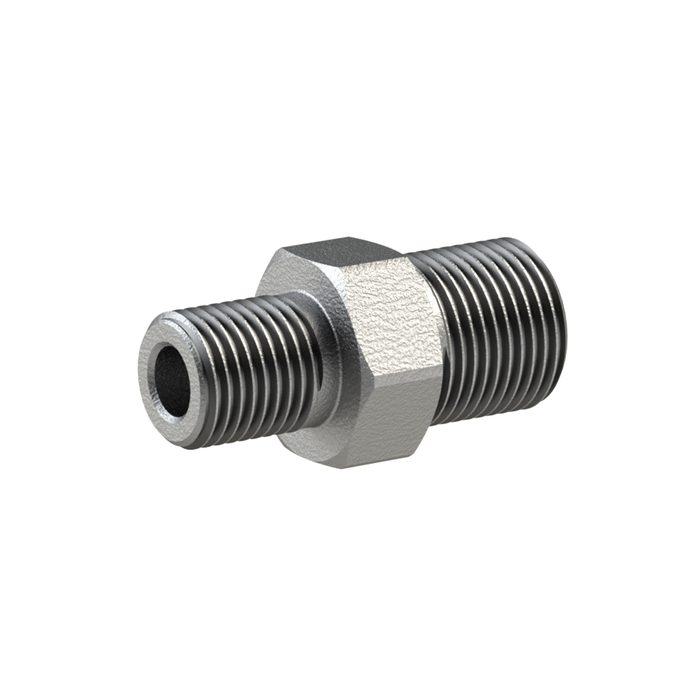

RIEGLER Double threaded nipple 245, ET/ET, reducing, R 1/2, R 1/4
Type number: TFD 245-1214
EAN: 4047322348379
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Doppelgewindenippel 245, AG/AG, red., R 1/2, R 1/4, Betriebstemperatur -20 °C bis 300 °C, schwarzer Temperguss, feuerverzinkt
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | nach ISO 7-1 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Thread 1 | R 1/2 |
| Thread 2 | R 1/4 |
| Class name | FLEX |
