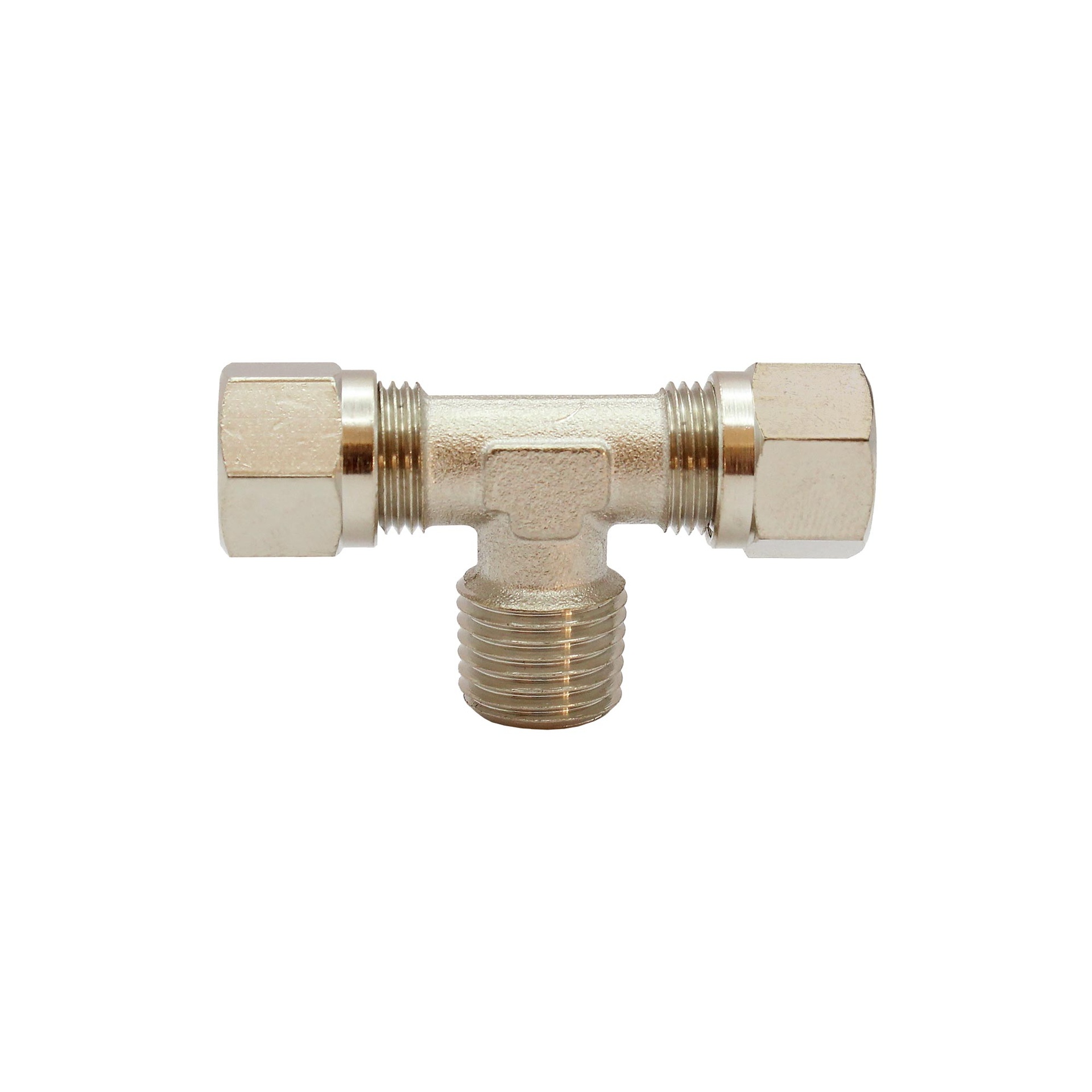

RIEGLER T screw-in fitting, R 3/8 o., Pipe exterior Ø 10 mm
Typennummer: N 120
EAN: 4047322161558
T-Einschraubverschraubung, R 3/8 a., Rohr-Außen-Ø 10 mm, SW 13, SW1 19, Betriebsdruck max. 60 bar, Temperatur max 150°C, MS vern.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| Thread | R 3/8 |
| SW 1 | 19 mm |
| SW | 13 mm |
| Tube outer Ø | 10 mm |
| L1 | 64 mm |
| L2 | 24 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
