RIEGLER Double threaded nipple red. Hexagonal, G 3/8 o., G 1/8 o., AF 20
Type number: 268.02-ES
EAN: 4047322069540
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Doppelgewindenippel, reduzierend, Sechskant, G 3/8 a., G 1/8 a., SW 20, Arbeitsdruck max. 20 bar, Edelstahl 1.4408
| Working pressure max. | 20 bar |
| SW | 20 mm |
| Thread standard | DIN EN ISO 228-1 |

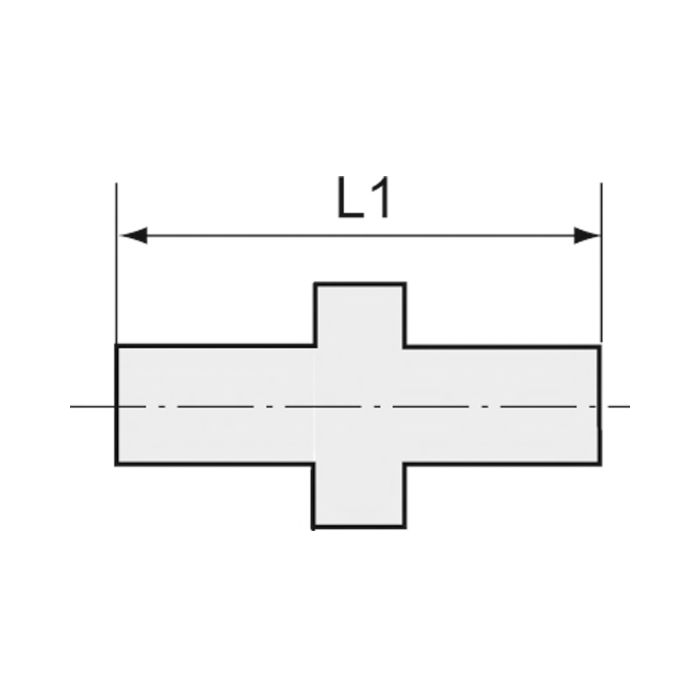

| L1 | 34.2 mm |
| L2 | 15.3 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| External thread 1 | G 3/8 |
| External thread 2 | G 1/8 |
| L3 | 12 mm |
| Class name | STAINLESS STEEL |
