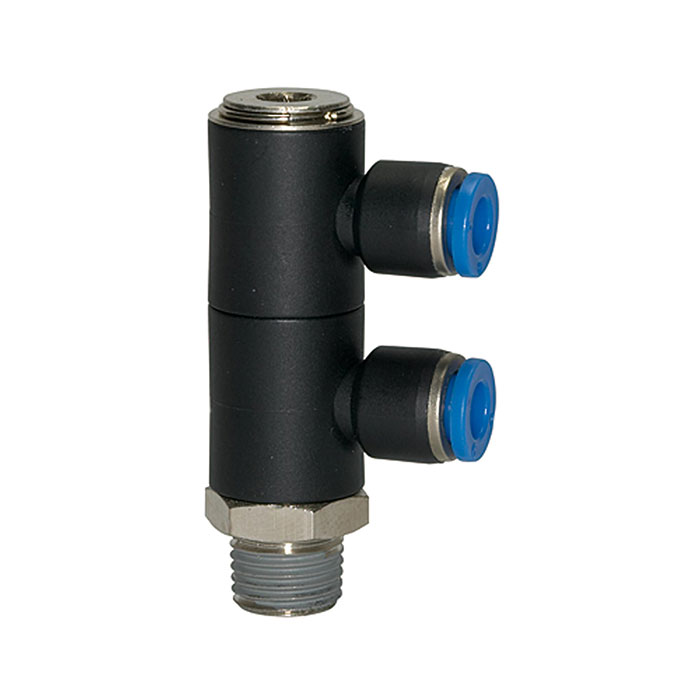

RIEGLER L-multi-distributor »Blue Series«, 2-fold, rotating, R 1/2 o.
Type number: 164.012-10
EAN: 4047322388962
L-Mehrfachverteiler »Blaue Serie«, 2-fach, drehbar, R 1/2 a., für Schl.-Außen-Ø 10 mm, pmax kurzzeitig 15 bar, Kunststoff/MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blaue Serie |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| Thread | R 1/2 |
| SW | 24 mm |
| for hose outer Ø | 10 mm |
| Internal hexagon | 8 mm |
| L1 | 66.7 mm |
| L2 | 34.7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
