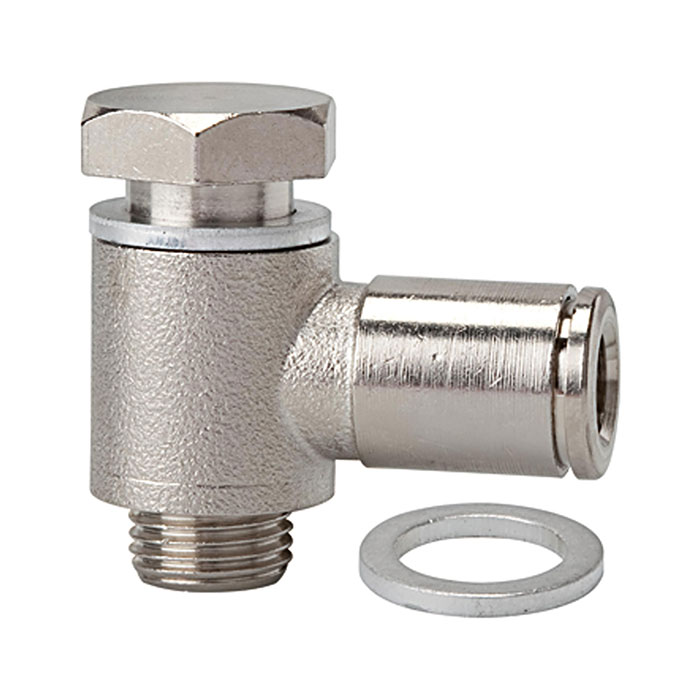

RIEGLER Push-in L-fitting »metallica«, rotating, M5 o., for hose ext. Ø 6
Type number: 863.005-6
EAN: 4047322279772
L-Steckverschraubung »metallica«, drehbar, M5 a., für Schlauch-Außen-Ø 6 mm, Arbeitsdruck -0,98 bis 16 bar, Messing vernickelt
| Medium | Compressed air |
| Sealing material | FKM |
| Series | metallica |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, welding technology, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Solder ring | Nickel-plated brass |
| Clamping ring | Edelstahl |
| Recommended hose | PA and PU |
| Thread | M5 |
| SW | 8 mm |
| External hexagon | with |
| for hose outer Ø | 6 mm |
| Execution | with O-ring |
| L1 | 19.5 mm |
| L2 | 19.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
| Construction method | rotatable |
