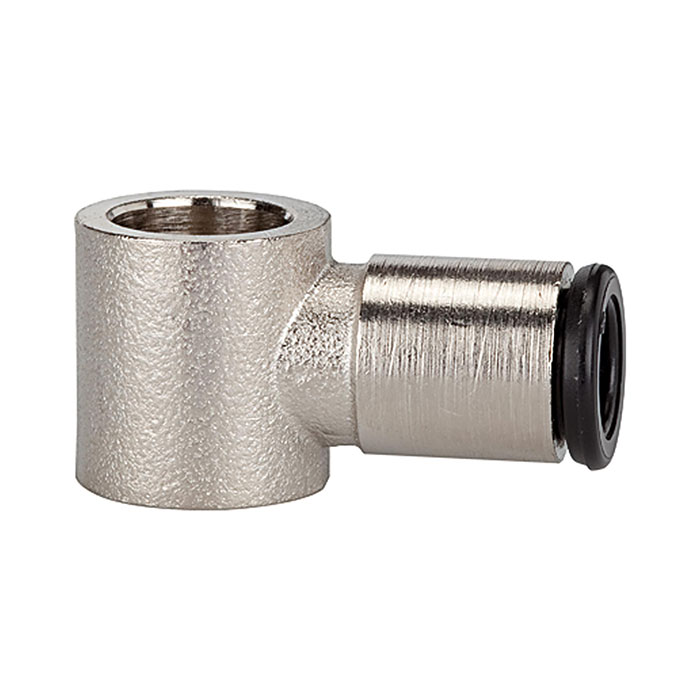

RIEGLER L-ring piece, for hollow screw G 3/8, for hose exterior Ø 8 mm
Type number: 765.038-8
EAN: 4047322285841
L-Ringstück, für Hohlschraube G 3/8, Schlauch-Außen-Ø 8, Arbeitsdruck -0,98 bis 16 bar, Betriebstemp. -20 °C bis 70 °C, MS vern.
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Solder ring | POM black |
| Clamping ring | Edelstahl |
| Recommended hose | PA, PU |
| for hose outer Ø | 8 mm |
| for banjo bolt | G 3/8 |

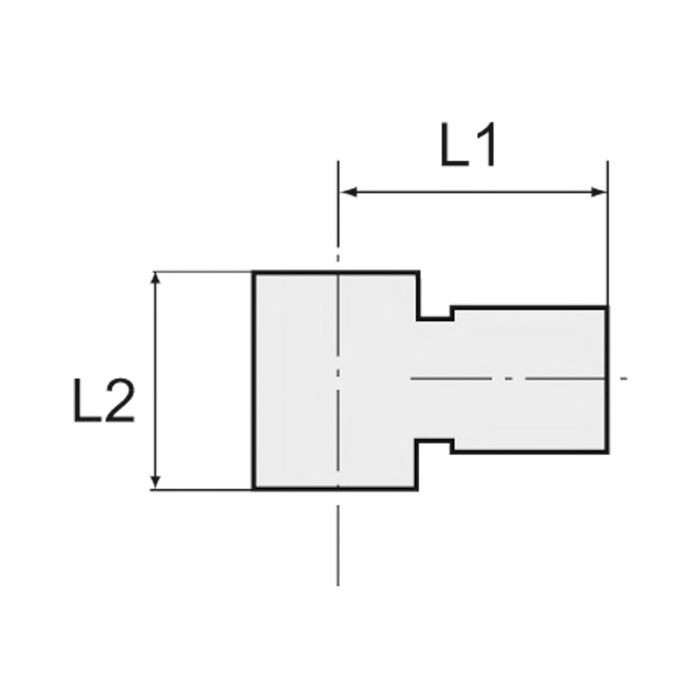

| L1 | 27 mm |
| L2 | 20 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
