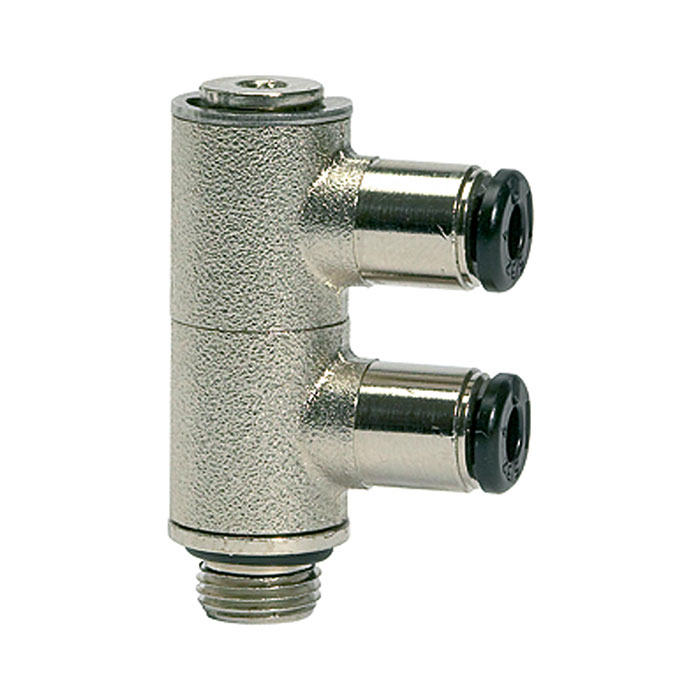

RIEGLER L-multi-distributor 2-fold »click-clock«, rotating, G 1/4 o.
Type number: 759.014-6 M
EAN: 4047322210386
L-Mehrfachverteiler 2-fach »click-clock«, drehbar, G 1/4 a., für Schlauch-Außen-Ø 6, Arbeitsdruck -0,99 bis 16 bar, Messing vern.
| Medium | Compressed air |
| Sealing material | NBR |
| Series | click-clock |
| Working pressure min. | -0.99 bar |
| Working pressure max. | 16 bar |
| Material | Nickel-plated brass |
| Area of application | Compressed air systems, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 80 °C |
| Solder ring | Hostaform |
| Clamping ring | Edelstahl |
| Recommended hose | PA, PU |
| Thread | G 1/4 |
| SW | 4 mm |
| for hose outer Ø | 6 mm |
| Execution | with hexagon socket, 2-way, with O-ring |

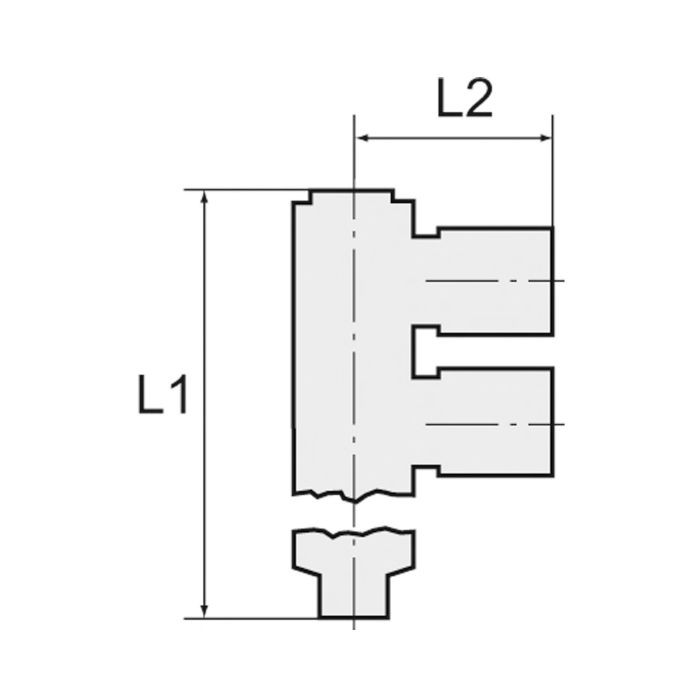

| L1 | 47 mm |
| L2 | 23 mm |
| E | 18 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Construction method | rotatable |
