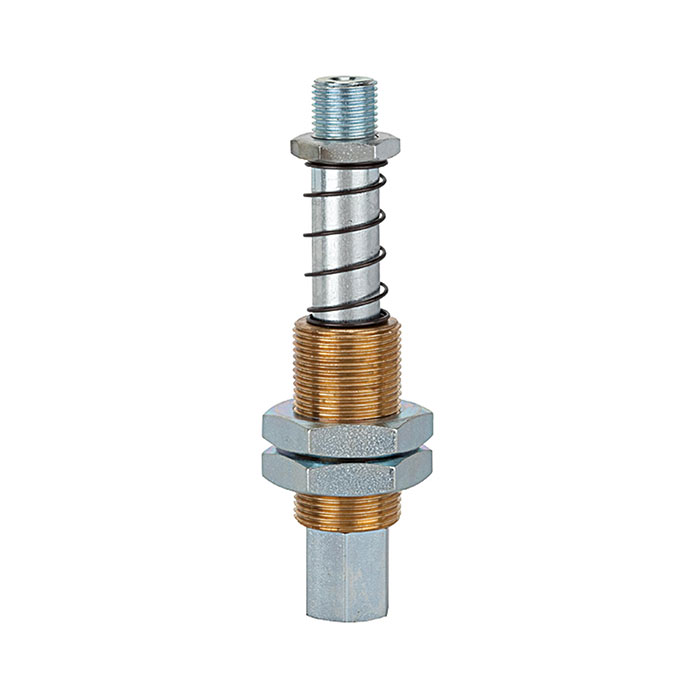

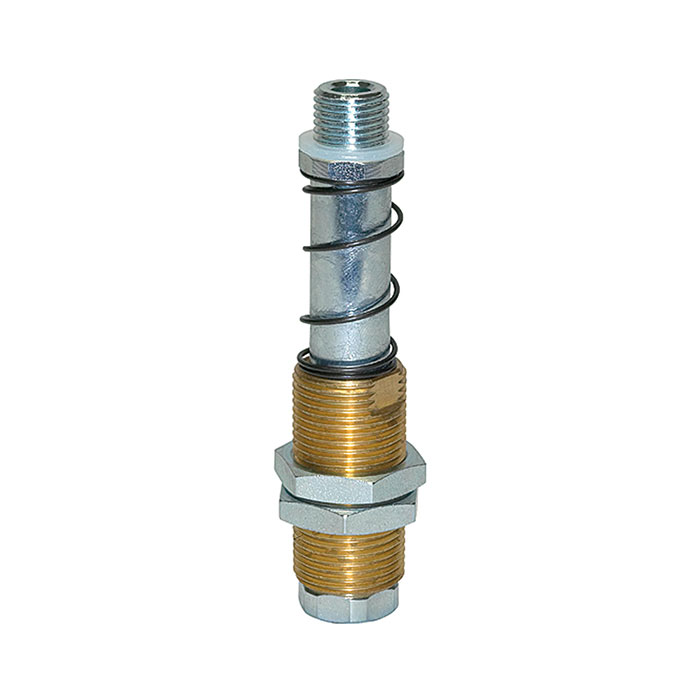

RIEGLER Spring plunger, Suction connection M3 IT, Spring travel 5 mm
Type number: FS 33-5
EAN: 4047322202152
Federstössel, Sauger-/Vakuumanschluss M3 Innengewinde, Federweg 5,0 mm, Betriebstemperatur 0 °C bis 80 °C
| Operating temperature min. | 0 °C |
| Operating temperature max. | 80 °C |
| Length | 33.5 mm |
| Vacuum connection | M3 IG |
| Suction cup connection | M3 IG |
| Spring travel | 5 mm |
| Spring rate | 0.596 N/mm |
| Spring preload | 1.49 N |
| Spring force | 2.98 N |
| Vertical load | 550 N |
| Horizontal load | 47 N |
| Weight | 9 g |
