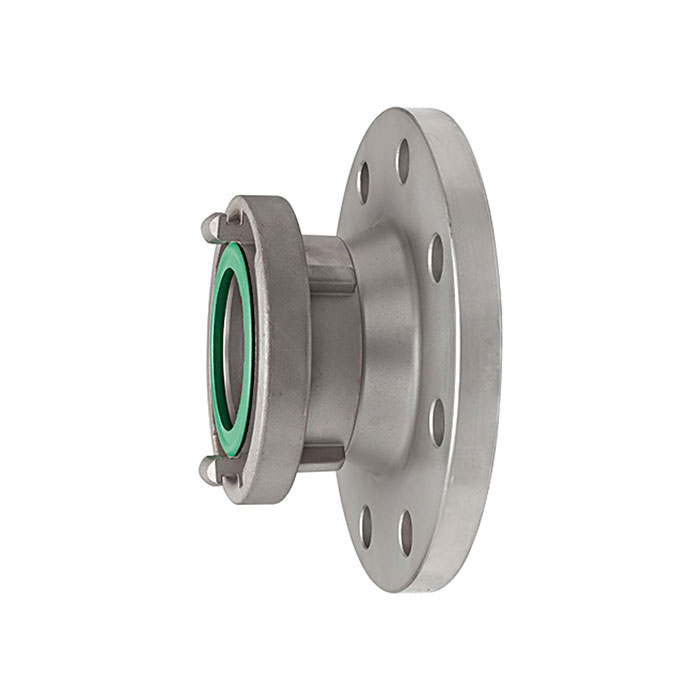

RIEGLER Storz reducer, Stainless steel V4A, Storz size 75-B, Flange DN 80
Type number: 3406.8980
EAN: 4047322256773
Storz-Übergangsstück, ES V4A, Storz-Größe 75-B, Knaggenabstand 89 mm, Flansch DN 80, PN max. 16 bar, Betriebstemp. -15°C bis 200°C
| Sealing material | FKM |
| Max. operating pressure | 16 bar |
| Material | Stainless steel V4A |
| Operating temperature min. | -15 °C |
| Operating temperature max. | 200 °C |
| Storz size | 75-B |
| Flange | DN 80 |
| Bolt circle diameter | 160 mm |
| Number of screw holes | 8 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Bend spacing 1 | 89 mm |
| Class name | STAINLESS STEEL |
