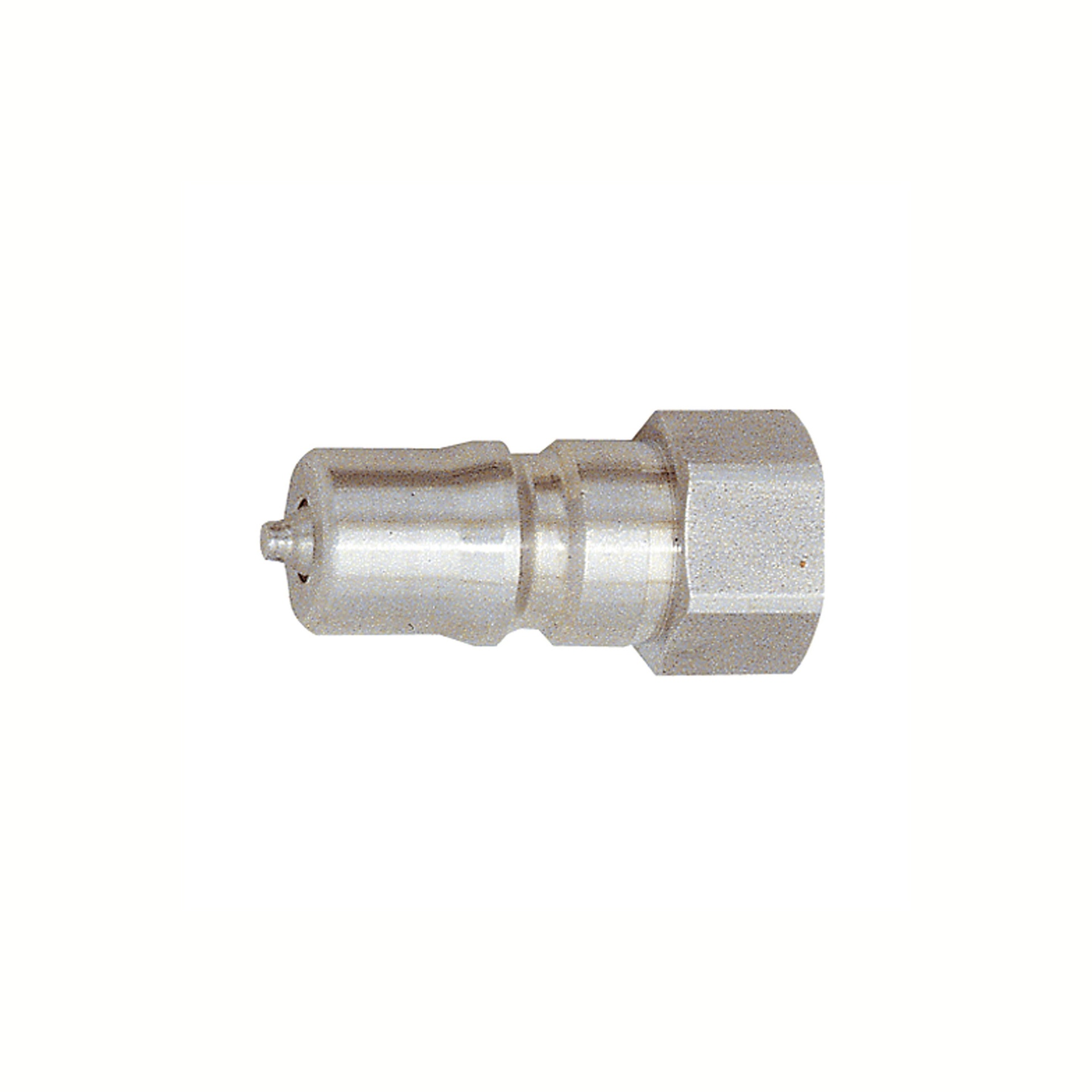

RIEGLER Closing nipple locking on both sides, 1.4305, G 3/8 IT, I.D. 7.5
Typennummer: 246.63
EAN: 4047322061490
Verschlussnippel beidseitig absperr., ES 1.4305, G 3/8 IG, NW 7,5, Betriebsdr. max. 250 bar, Mediums-/Umgeb.temp. -15°C bis 200°C
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 250 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Ball | Stainless steel 1.4401 |
| Spring | Stainless steel 1.4310 |
| Sleeve | Stainless steel 1.4305 |
| Valve | Edelstahl 1.4305 |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 1280 l/min |
| SW | 22 mm |
| NW | 7.5 |
| Length | 39 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 3/8 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
