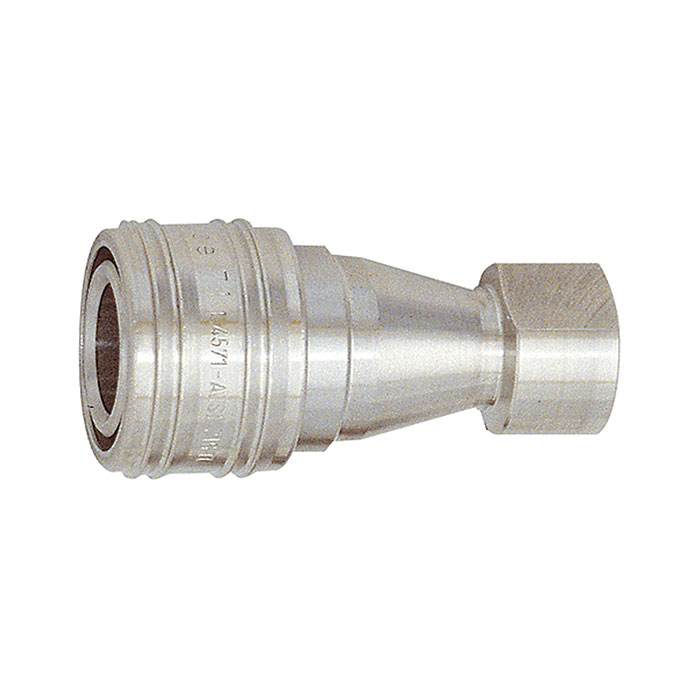

RIEGLER Hydraulic coupling lock on both sides, 1.4305, G 1/4 IT, I.D. 6.3
Typennummer: 246.12
EAN: 4047322061339
Hydraulikkupplung beidseitig absperr., ES 1.4305, G 1/4 IG, NW 6,3, Betriebsdr. max. 250 bar, Mediums-/Umgeb.temp. -15°C bis 200°C
| Housing | Stainless steel 1.4305 |
| Sealing material | FKM |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 250 bar |
| Medium temperature min. | -15 °C |
| Medium temperature max. | 200 °C |
| Ambient temperature min. | -15 °C |
| Ambient temperature max. | 200 °C |
| Ball | Stainless steel 1.4401 |
| Spring | Stainless steel 1.4310 |
| Sleeve | Stainless steel 1.4305 |
| Valve | Edelstahl 1.4305 |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 840 l/min |
| SW | 19 mm |
| NW | 6.3 |
| Length | 57.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | STAINLESS STEEL |
