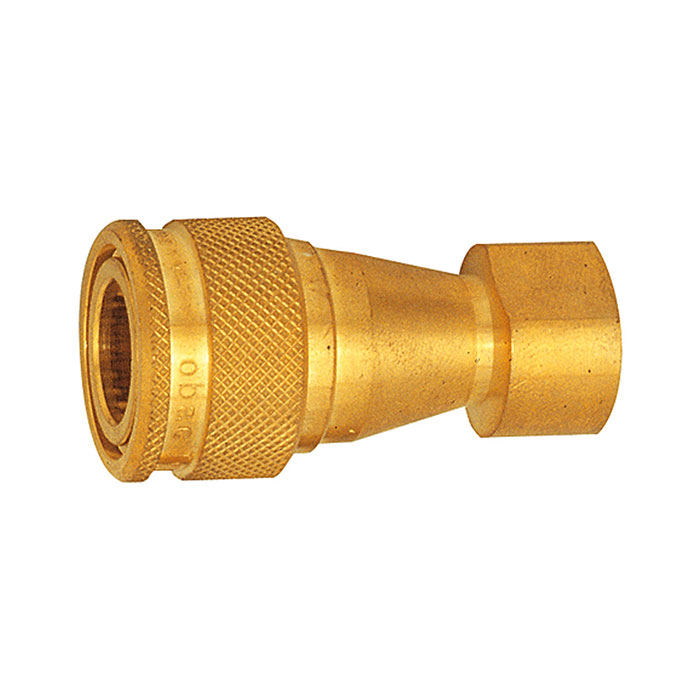

RIEGLER Hydraulic coupling lock on both sides, Brass, G 1/2 IT, I.D. 11
Typennummer: 246.04
EAN: 4047322061308
Hydraulikkupplung beidseitig absperrend, Messing blank, G 1/2 IG, NW 11, Betriebsdruck max. 150 bar, Temp. -20°C bis 100°C
| Housing | Brass bright |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 150 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Ball | stainless steel |
| Spring | stainless steel |
| Sleeve | Brass bright |
| Snap ring | nichtrostender Stahl |
| Valve | Messing blank |
| Operating pressure | Based on 50 °C medium temperature (static operating pressure) |
| Flow rate (air) | 1950 l/min |
| SW | 27 mm |
| NW | 11 |
| Length | 76 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | FLEX |
