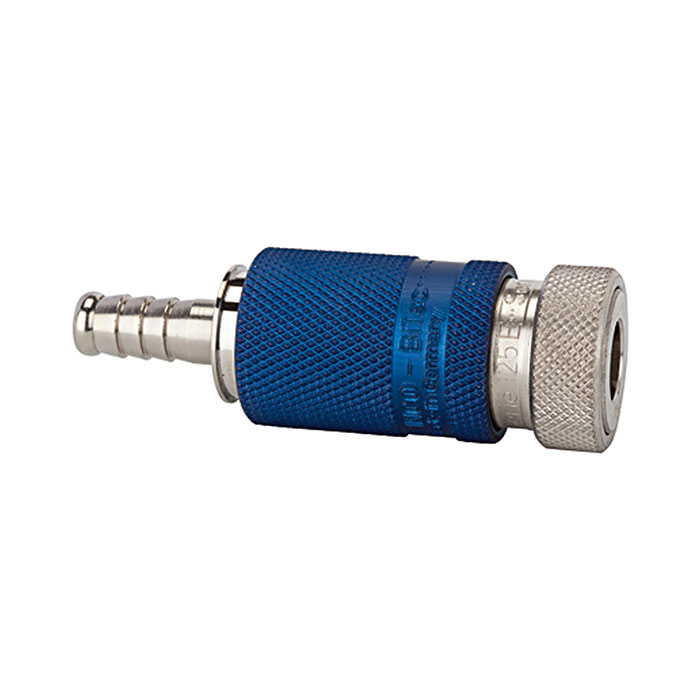

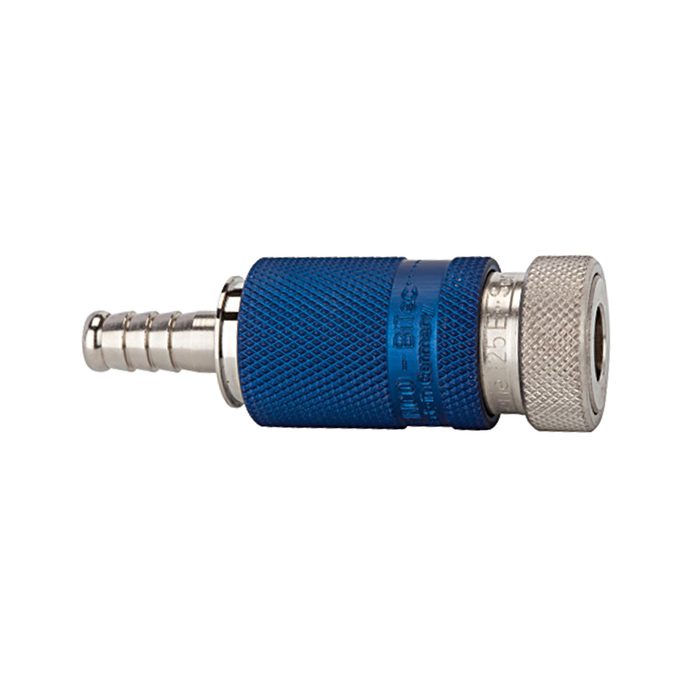

RIEGLER Safety coupling I.D. 7.8, Bi-Tec type, nickel-pl. brass, I.D. 10
Typennummer: 249.27
EAN: 4047322062510
Sicherheitskupplung NW 7,8, Typ Bi-Tec, Messing vern., Tülle LW10, Betriebsdruck max. 20 bar, Med.-/Umgebungstemp. -20°C bis 100°C
| Housing | Nickel-plated brass |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 20 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 1400 l/min (air) |
| Ball | Stainless steel |
| Spring | Stainless steel |
| Valve body | Messing vernickelt |
| Sleeve | Aluminum, anodized |
| Unlocking sleeve | Hardened and nickel-plated steel |
| NW | 7.8 |
| Length | 86 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | LW 10 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
