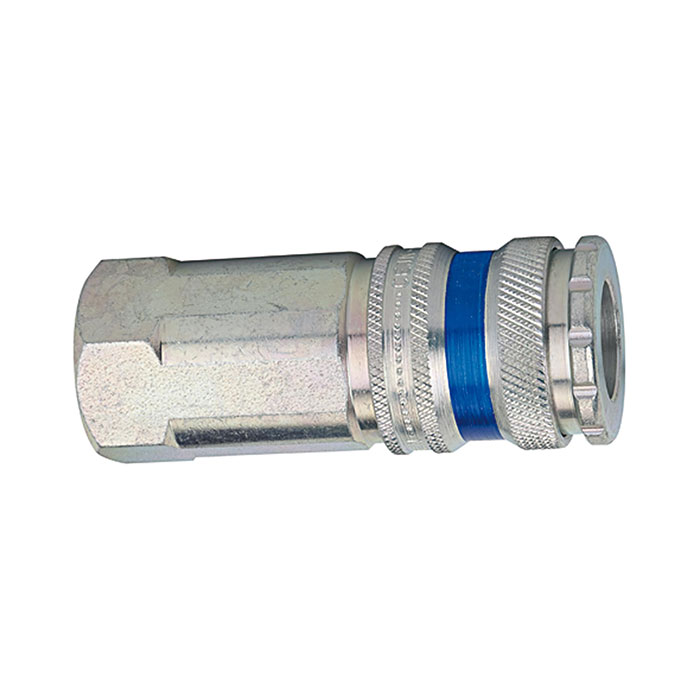

RIEGLER Quick-connect coupling I.D. 10, Robust design, G 3/8 IT
Typennummer: 410.52
EAN: 4047322273626
Schnellverschlusskupplung NW 10, Stahl/MS verz., Robustausführung, G 3/8 IG, Betriebsdruck max. 16 bar, Temp. -20 °C bis 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 16 bar |
| Flow rate | 3900 l/min (air) |
| Material | Galvanized steel / brass |
| SW | 24 mm |
| NW | 10 |
| Length | 62.8 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 3/8 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
