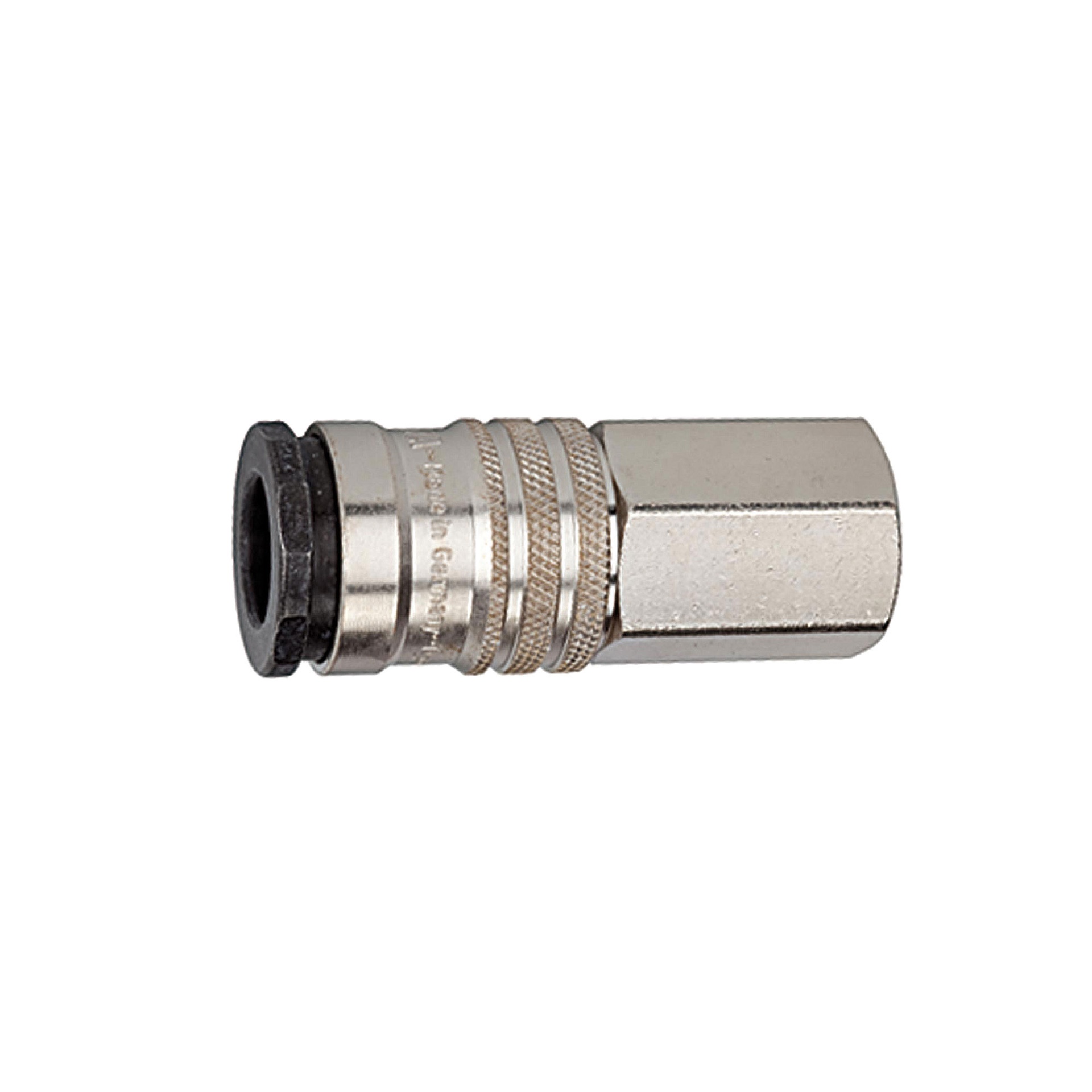

RIEGLER Quick-connect coupling I.D. 10, High flow rate, G 1/2 IT
Typennummer: 241.53
EAN: 4047322207416
Schnellverschlusskupplung NW 10, hoher Durchfluss, Stahl/MS vern., G 1/2 IG, Druck 0-35 bar, Mediums-/Umgeb.temp. -20°C bis 100°C
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 35 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 3600 l/min (air) |
| Valve seat | Messing |
| Ball | stainless steel |
| Spring | stainless steel |
| Valve body | Stahl, QPQ behandelt |
| Snap ring | nichtrostender Stahl |
| Threaded piece | Nickel-plated brass |
| Unlocking sleeve | Nickel-plated brass |
| Valve | Messing |
| SW | 24 mm |
| NW | 10 |
| Length | 67.6 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/2 IG |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
