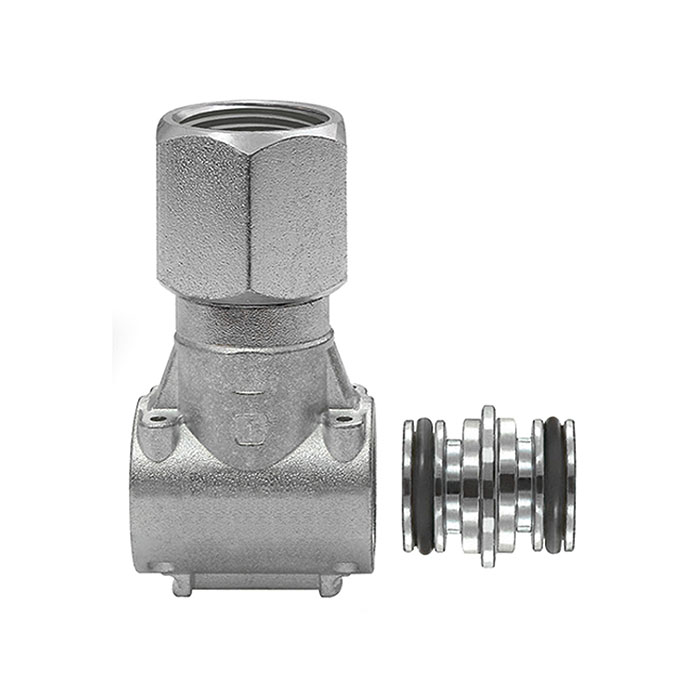

RIEGLER Intermediate segment »Multi-Link«, Segment G 1/2, Removal unit 1
Typennummer: ZS-12
EAN: 4047322350969
Zwischensegment »Multi-Link«, Segment G 1/2, Entnahmeeinheit 1, Betriebsdruck max. 16 bar, Temp. -20 °C bis 100 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 100 °C |
| Medium | Compressed air, non-aggressive gases |
| Connection thread | G 1/2 inside |
| Sealing material | NBR |
| Max. operating pressure | 16 bar |
| Material | Galvanized steel / brass |
| Withdrawal units | 1 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Segment G 1/2 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Theme shop | SAFETY |
| Class name | MAX |
