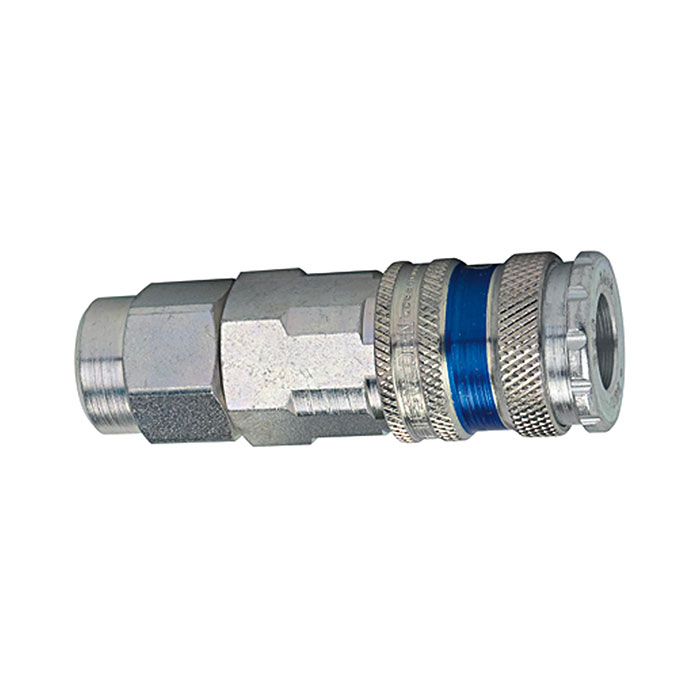

RIEGLER Quick-connect coupling I.D. 7.6 »stream line«, gal. steel / brass
Typennummer: 244.93
EAN: 4047322274906
Schnellverschlusskupplung NW 7,6, »stream line«, Stahl/Messing verzinkt, für Schlauch 16x11, Betriebsdruck max. 16 bar
| Housing | Steel |
| Sealing material | NBR |
| Flow rate measurement | at 6 bar and Î"<sub>p </sub>= 0.5 bar |
| Max. operating pressure | 16 bar |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 100 °C |
| Ambient temperature min. | -20 °C |
| Ambient temperature max. | 100 °C |
| Flow rate | 2100 l/min (air) |
| Spring | Stainless steel |
| Sleeve | Hardened and nickel-plated steel |
| SW 1 | 24 mm |
| SW 2 | 24 mm |
| NW | 7.6 |
| Length | 68 mm |
| for hose | 16x11 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
