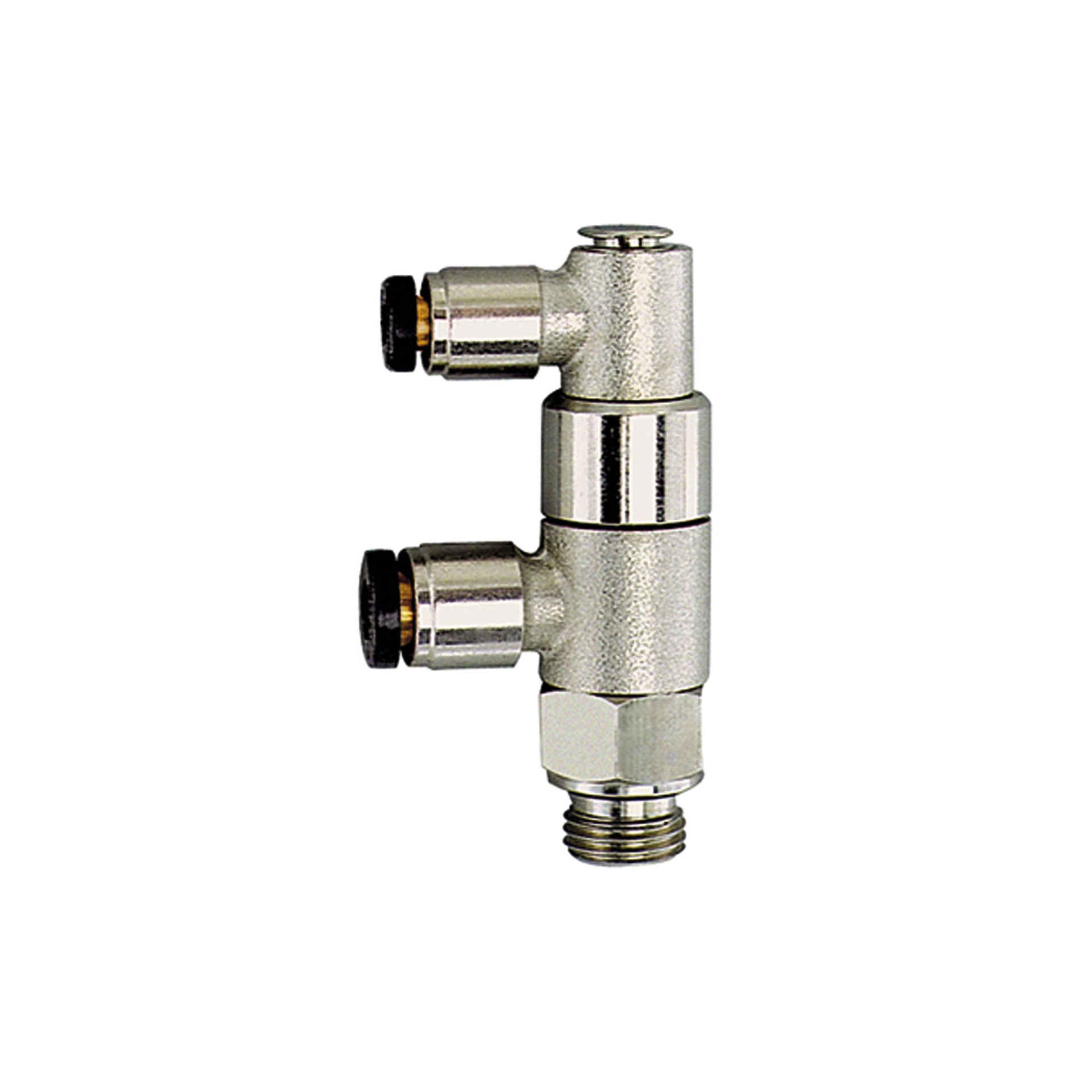

RIEGLER Stopper valve pneumatically actuated, G 3/8, Plug connector 8/4
Type number: 67.038-8
EAN: 4047322111584
Stoppventil pneumatisch betätigt, G3/8, Steckanschluss 8/4, Arbeitsdr. max.10bar, Mediums-/Umgebungstemp. -10°C bis 70°C, MS vern.
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 70 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 70 °C |
| Material | Nickel-plated brass |
| Installation position | any, ring piece can be rotated 360° after tightening |
| Control pressure min. | 1 bar |
| Control pressure max. | 5 bar |
| Connection | G 3/8 |
| Connection | 8 mm |
| Connection | 4 mm |
| B | 63 mm |
| C | 32 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
