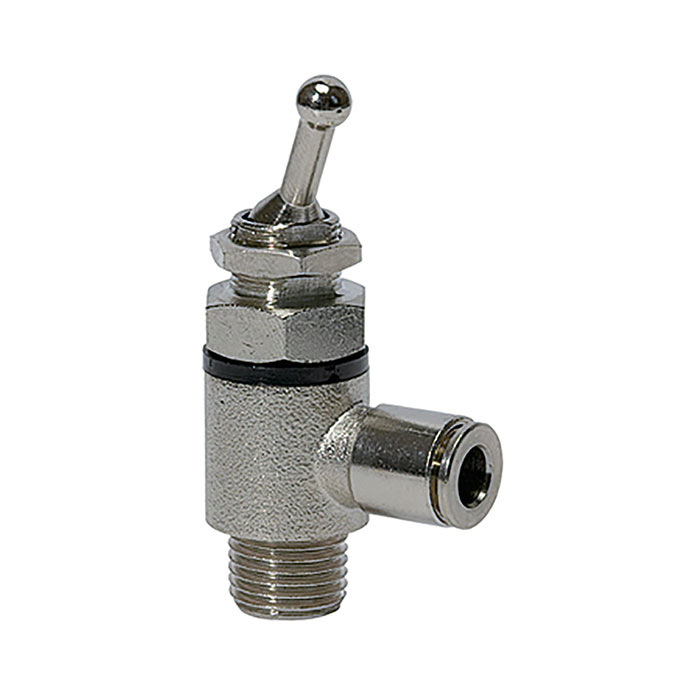

2/2-way toggle lever valve, both sides, Push-in connector, G 1/4
Typennummer: 3614.014-10
EAN: 4047322181358
2/2-Wege-Kipphebelventil, beidseitig, Steckverbindung Schlauch 10, G 1/4, PN max. 8 bar, Temp. -20 °C bis 80 °C, Messing vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Interior parts | Messing blank |
| Banjo bolt | Messing vernickelt |
| Swivel arm | Messing vernickelt |
| Captive seals | Polyamid glasfaserverstärkt |
| Rocker arm | Messing vernickelt |
| Thread | G 1/4 |
| Control panel thread | M12x0,75 (Blechstärke max. 4 mm) |
| SW | 17 mm |
| Function | 2/2-Wege |
| for hose | 10 mm |
| Connection type | Anschluss Steckverbindung |
| B | 60 mm |
| C | 26.5 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | Druckanschluss beidseitig |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
