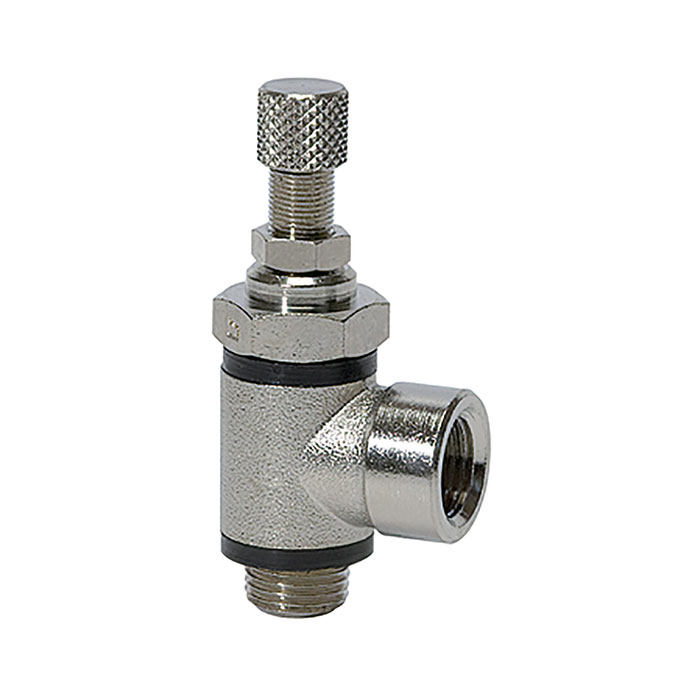

RIEGLER Throttle valve, both directions throttling (B) G 1/8 IT, G 1/8
Type number: 359.018-1/8
EAN: 4047322181105
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Dros.ven., Schlitzschr., beidseitige Dros. (B), Gewindeanschluss G 1/8 IG, G 1/8, PN max.10bar, Temp. -20 °C bis 80 °C, MS vern.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Operating pressure min. | 0 bar |
| Max. operating pressure | 10 bar |
| Base body | Nickel-plated brass |
| Captive seals | Polyamid glasfaserverstärkt (nur Teile in Hohlschraubenbauweise) |
| Silicone-free | Ja |
| Thread | G 1/8 |
| SW | 14 mm |
| Function | Beidseitige Drosselung (B) |
| Connection type | Threaded connection |
| B | 32 mm |
| C | 16 mm |
| Execution | adjustable with slotted screw |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 FEMALE THREAD |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N, CW617N |
| Class name | PLUS |
| Construction method | Banjo bolt design |
