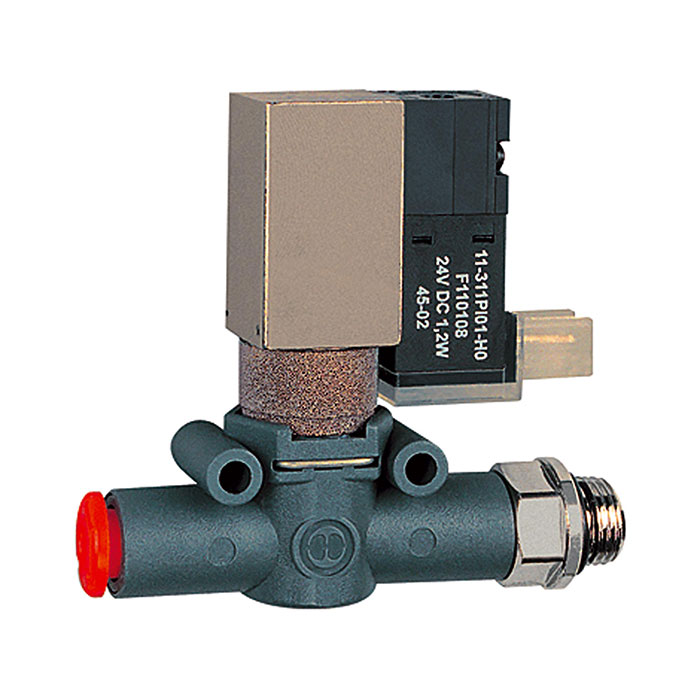

RIEGLER 3/2-way solenoid valve silenced venting, G 1/8, NO, hose 6
Type number: 485.018-6
EAN: 4047322093064
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way solenoid valve "lineonline" Vent. silenced, hose thread, G 1/8, Ø 6, NO, 24 V DC, operating pressure 2.5-7 bar
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Power consumption | 1,2 W |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 7 bar |
| Operating voltage | 24 V DC |
| Interior parts | Nickel-plated brass, brass, technopolymer, stainless steel |
| Base body | Technopolymer |
| Pneumatic symbols | on the housing |
| Thread | G 1/8 |
| Function | NO |
| for hose Ø | 6 mm |
| A | 58.3 mm |
| B | 57.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate at 6.3 bar and Î "p 1.0 bar | 380 Nl/min |
| I | 14.6 mm |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
