RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6

Price:

23.45 €
    ​
English (US)
  2. Shop
  3. Mini Pressure Regulators and Function Connectors
  4. RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6
RIEGLER Compact pressure regulator, Push-in connector for hose 8, G 1/8
RIEGLER Compact pressure regulator, Push-in connector for hose 8, G 1/8
24.35 €
24.35 €
RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 8
RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 8
25.25 €
25.25 €

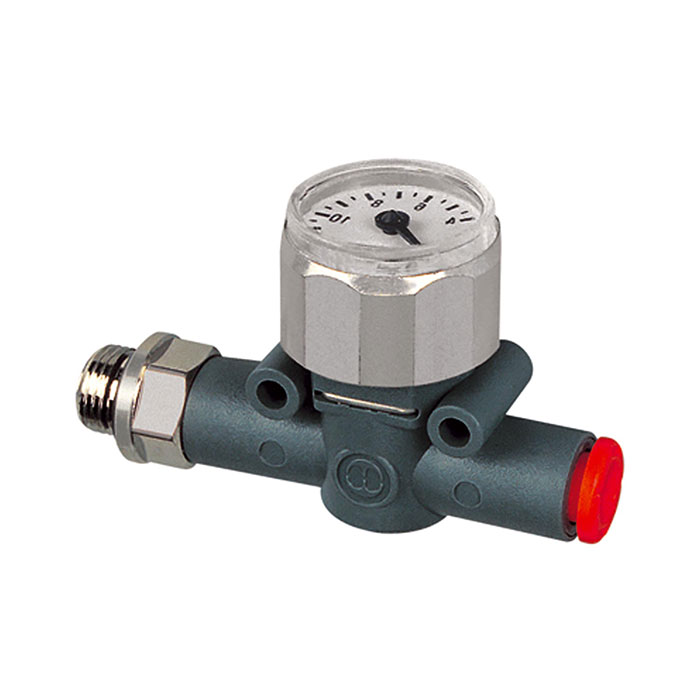

RIEGLER Pressure gauge, Thread (inlet) - hose (outlet), G 1/4, hose Ø 6

https://www.filcom-technik.de/web/image/product.template/175817/image_1920?unique=f3b08df

Type number: 461.014-6

EAN: 4047322091510

23.45 € 23.45 EUR 23.45 € VAT Included

30.32 € VAT Included

    This combination does not exist.

    from 110 € free shipping Details shipping costs
    Contact Us
    Product no. :
    106760
    Category :
    Mini Pressure Regulators and Function Connectors
    Weight :
    0.04 kg

    Manometer »lineonline«, Gewinde (Eingang) - Schlauch (Ausgang), G 1/4, für Schlauch-Ø 6 mm, Betriebsdruck max. 12 bar

    Temperature range min. -20 °C
    Temperature range max. 60 °C
    Sealing material NBR
    Max. operating pressure 12 bar
    Interior parts Nickel-plated brass, brass, technopolymer, stainless steel
    Base body Technopolymer
    Pneumatic symbols on the housing
    Measuring accuracy +/- 4 % of the full scale value
    Scaling 0 - 12 bar
    Thread G 1/4
    Measuring range min. bar 0
    Measuring range max. bar 12
    for hose Ø 6 mm
    A 61.3 mm
    B 35 mm
    I 14.6 mm
    Class name PLUS
