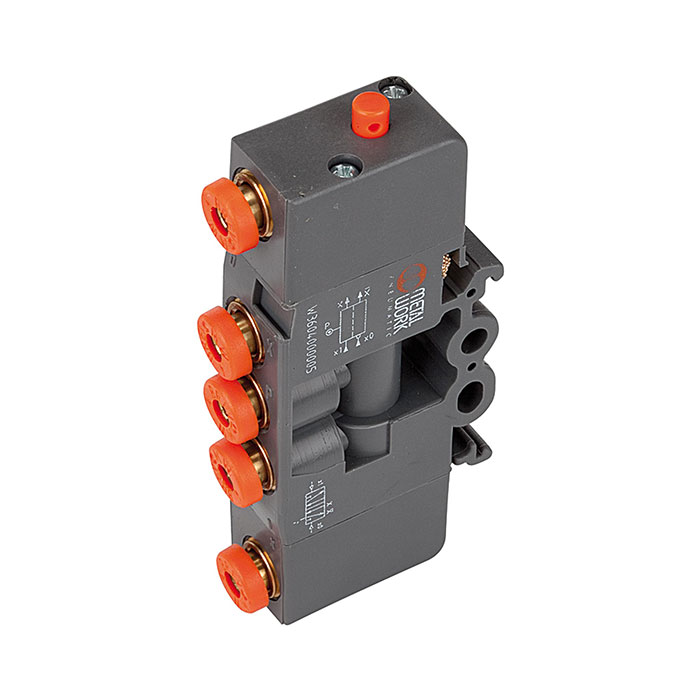

RIEGLER Pneumatic logic elements, MEMORY, Techno-polymer, DN 2.7
Typennummer: W 36-5
EAN: 4047322205337
Pneumatik Logikelement, MEMORY, Technopolymer, DN 2,7, Temperaturbereich -10 °C bis 60 °C, Arbeitsdruck 0 bis 8 bar
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Sealing material | NBR |
| Flow rate | 100 l/min (at 6 bar and Î"<sub>p</sub> = 1 bar) |
| Working pressure min. | 0 bar |
| Working pressure max. | 8 bar |
| Material | Technopolymer |
| Slider | Aluminum |
| Height | 41 mm |
| Function | MEMORY |
| Length | 89.5 mm |
| for hose outer Ø | 4 mm |
| Nominal Ø | 2.7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Provision | via compressed air |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Pilot pressure min. | 1.5 bar |
| Pilot pressure max. | 8 bar |
| Class name | MAX |
