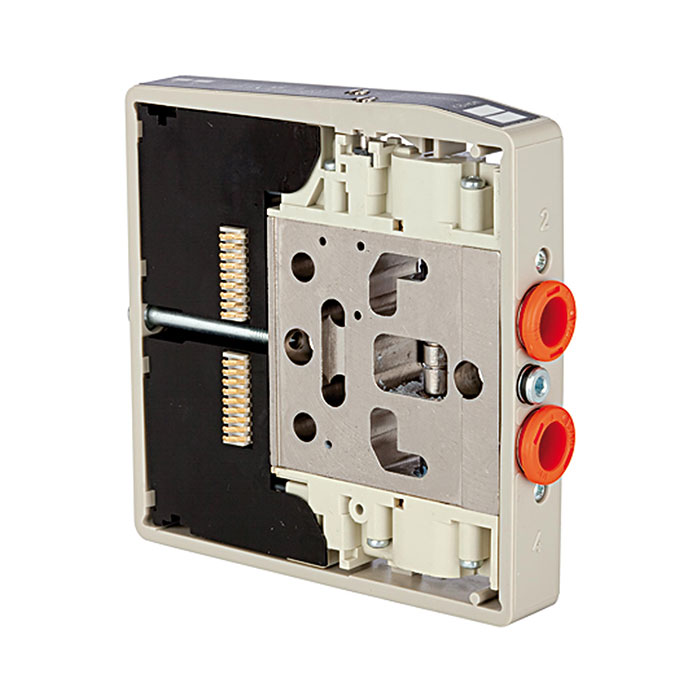

RIEGLER Valve disc HDM Conn.8mm 5/2-way bistable (double solenoid valve)
Typennummer: K 8
EAN: 4047322286763
Ventilscheibe für Ventilinsel HDM, Anschl. 8 mm, 5/2-Wege, bistabil (Impulsventil), Temp. -10 °C bis 60 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Power consumption | 0.6 W per actuation |
| Protection class | IP 65 |
| Material | Aluminum |
| Control | up to 16 actuations (e.g. 16 spring-return valves) |
| Manual override | resting |
| Function | 5/2-Wege, bistabil (Impulsventil) |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| Flow rate | 800 Nl/min |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | MAX |
