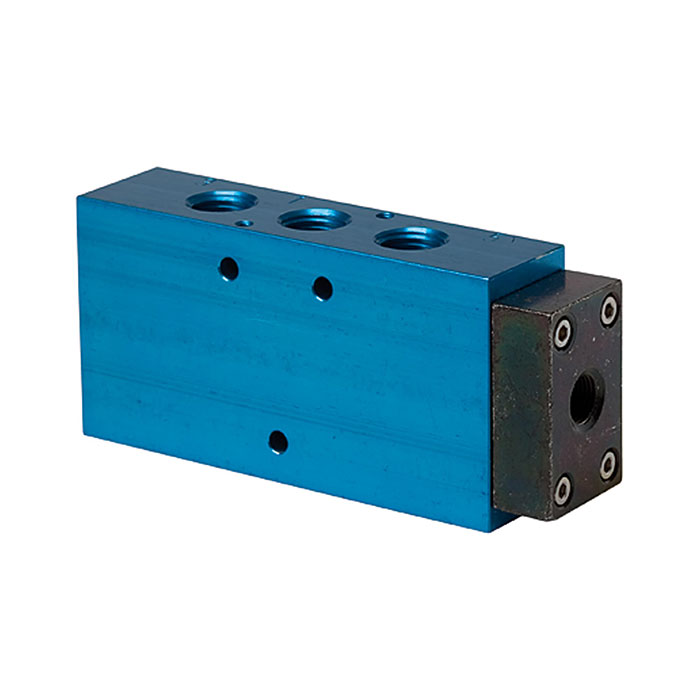

RIEGLER 5/2-way valve, Single-sided pneumatic, monostable, G 1/4, DN 7.5
Type number: 517.622
EAN: 4047322278645
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
5/2-way valve, pneumatic on one side, monostable, G 1/4, DN 7.5, operating pressure 2.5 to 10 bar, operating temp. -10 °C to 60 °C, aluminum
| Temperature range min. | -10 °C |
| Temperature range max. | 60 °C |
| Housing | Anodized aluminium, blue |
| Sealing material | NBR |
| Protection class | IP 65 (DIN 46244) |
| Electrical connection | Device plug PG 9, form B |
| Operating pressure min. | 2.5 bar |
| Max. operating pressure | 10 bar |
| Control pressure min. | 2.5 bar |
| Piston slide | Stainless steel |
| Manual override | groping |
| DN | 45419 |
| Function | 5/2 |
| Actuation | monostabil |
| Symbol | 27 |
| Connection | G 1/4 |
| Flow rate | 1500 Nl/min |
| Flow rate measurement 1 | Flow rate at 6 bar and Î "p 1.0 bar |
| Class name | MAX |
