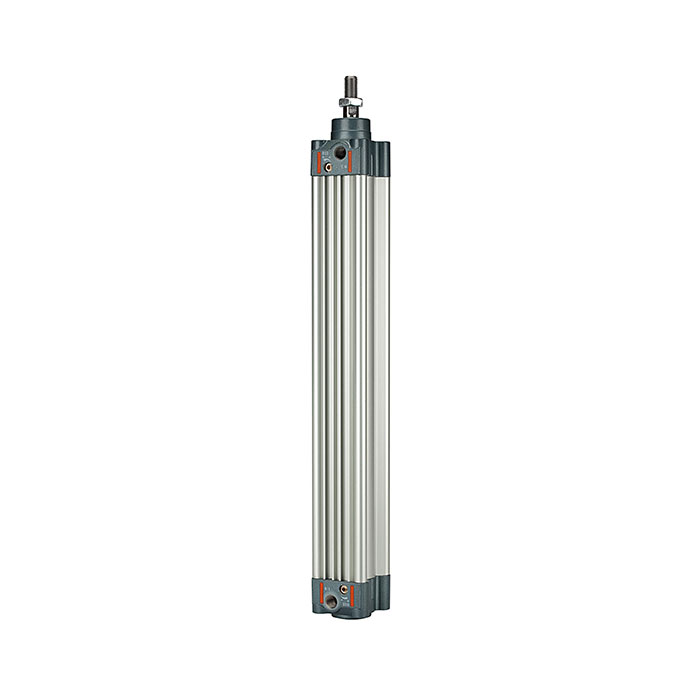

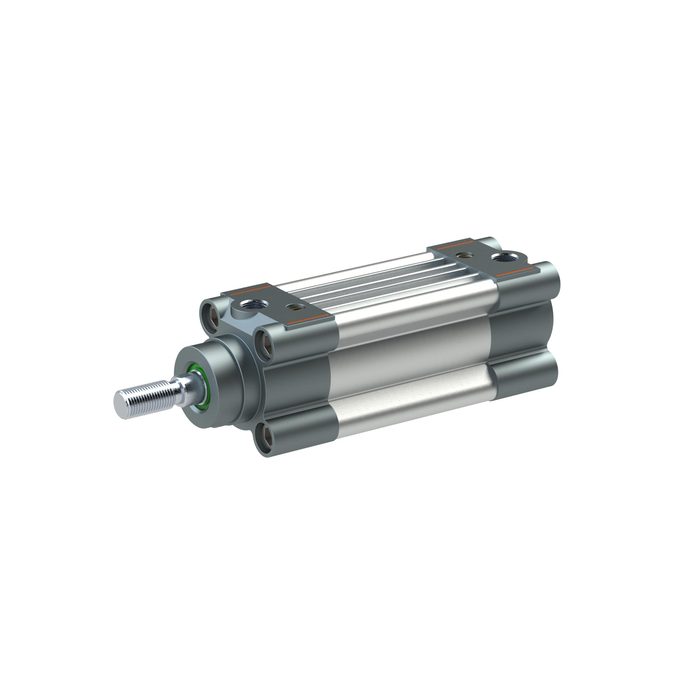

RIEGLER Standard cylinder, double-acting, Piston Ø 40, Stroke 80, G 1/4
Type number: 5.DMD.40080
EAN: 4047322094320
Normzylinder, ISO 15552, doppeltwirkend, Magnet, Kolben-Ø 40, Hub 80, G 1/4, Arbeitsdruck max. 10 bar, Temp. -10 °C bis 80 °C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Medium | Lubricated or non-lubricated, filtered compressed air (if lubricated, then continuous) |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Aluminium profile tube with integrated T-slots, anodized |
| Structure | End caps / profile tube with self-tapping screws |
| Piston Ø | 40 mm |
| Function | doppeltwirkend |
| Response pressure min. | 0.4 bar |
| Stroke | 80 mm |
| Piston rods AG | M12x1.25 |
| Piston rod Ø | 16 mm |
| Piston rod thread | M12x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/4 |
| Piston rod | Stahl C45, hartverchromt |
| Piston | POM |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 15552 |
| Damping | with adjustable damping |
| Thread piston rod | External thread on the piston rod |
