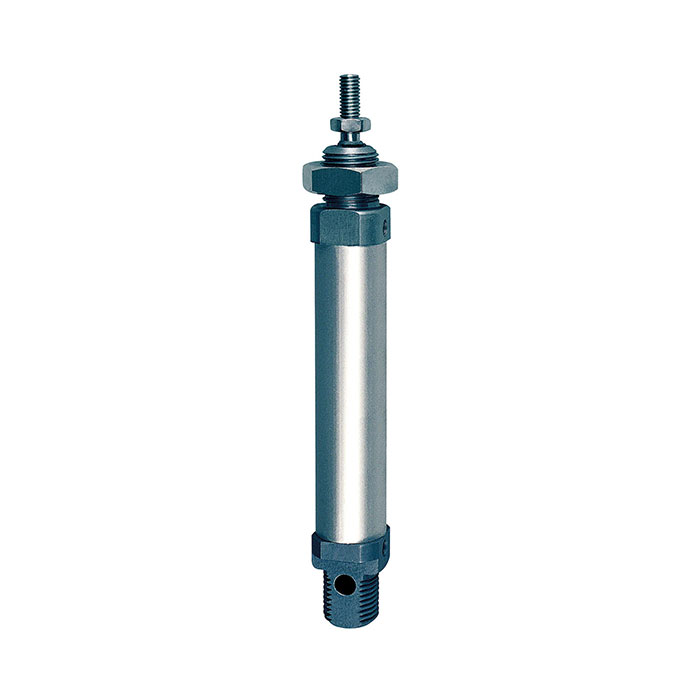

RIEGLER Round cylinder, double-acting, Piston Ø 25, Stroke 250, G 1/8
Type number: 1.DM.25250
EAN: 4047322010856
Rundzyl., ISO 6432, doppeltwir., o. einstellb. Dämpf., Mag., Kol.-Ø25, Hub 250, G 1/8, Arbeitsdr. max. 10bar, Temp. -10°C bis 80°C
| Temperature range min. | -10 °C |
| Temperature range max. | 80 °C |
| Sealing material | NBR |
| Working pressure max. | 10 bar |
| Pipe | Stainless steel 1.4301 |
| Structure | Connection: stainless steel tube / flanged end caps |
| Piston Ø | 25 mm |
| Function | doppeltwirkend |
| Response pressure min. | 0.6 bar |
| Stroke | 250 mm |
| Piston rod thread | M10x1.25 |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| Connection | G 1/8 |
| Piston rod | Stahl C45, hartverchromt |
| Piston | Acetal-Kunstharz |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.0035 |
| Exception | 6a |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | C 45 Pb |
| Class name | PLUS |
| Magnet | with magnet |
| Standard | according to ISO 6432 |
| Damping | without adjustable damping |
| Thread piston rod | External thread on the piston rod |
