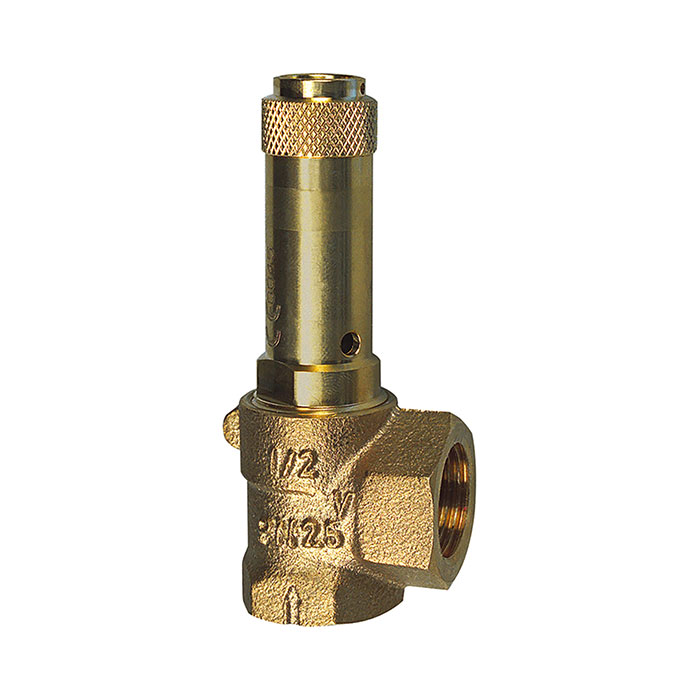

RIEGLER Corner safety valve, liquids, G 1 1/4, Trigger pressure 11 bar
Type number: 221.06-11,0
EAN: 4047322261258
Eck-Sicherheitsventil, für Flüssigkeiten, Rotguss, FPM, Betriebstemp. -10 °C bis 110 °C, G 1 1/4, SW 50, Ansprechdruck 11 bar
| Housing | Gunmetal |
| Membrane | FPM |
| Spring cover | Brass |
| Interior parts | Brass |
| Setting range | 1 - 16 bar (depending on the seal used) |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 110 °C |
| Spring | Carbon steel |
| Entry and exit | female thread type G according to DIN EN ISO 228-1 |
| Thread | G 1 1/4 |
| SW | 50 mm |
| Setting range min. | 1 bar |
| Response pressure min. | 11 bar |
| H | 152 mm |
| L1 | 40 mm |
| L2 | 35 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Setting range max. | 16 bar |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | FLEX |
