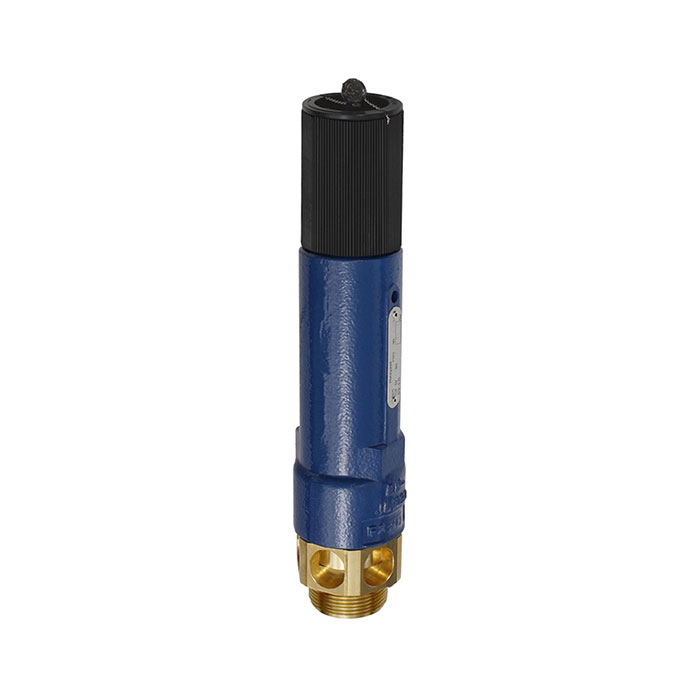

RIEGLER High performance safety valve, G 1 1/2, Trigger pressure 2 bar
Type number: 1145.02-2,0
EAN: 4047322019972
Hochleistungs-Sicherheitsventil, rüttelfeste Ausführung, Messing, Betriebstemp. max. 260 °C, G 1 1/2, SW 60, Ansprechdruck 2 bar
| Housing | Brass |
| Operating pressure min. | 0.5 bar |
| Max. operating pressure | 30 bar |
| Spring cover | Gray cast iron, powder-coated blue |
| Operating temperature max. | 260 °C |
| Thread | G 1 1/2 |
| SW | 60 mm |
| Response pressure min. | 2 bar |
| A | 20 mm |
| H | 293 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| do | 32 mm |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | MAX |
