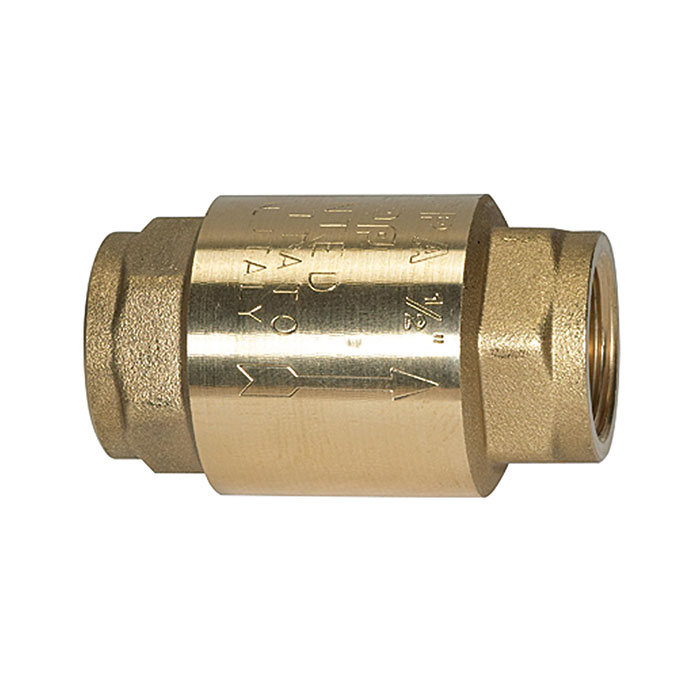

RIEGLER Check valve, Full passage, Brass, G 1/2, 0.01 - 0.03 bar
Type number: 9227.32
EAN: 4047322224444
Rückschlagventil, voller Durchgang, Messing, Betriebstemp. -20 °C bis 100 °C, G 1/2, PN max. 25 bar, Öffnungsdruck 0,01 - 0,03 bar
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 25 bar |
| Opening pressure min. | 0.01 - 0.03 bar |
| Valve disc | Edelstahl |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 100 °C |
| Spring | Stainless steel |
| Valve pin | Messing |
| Thread | G 1/2 |
| SW | 27 mm |
| Thread standard | G-Gewinde nach DIN EN ISO 228-1 |
| Length | 58.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW614N |
| Class name | EASY |
