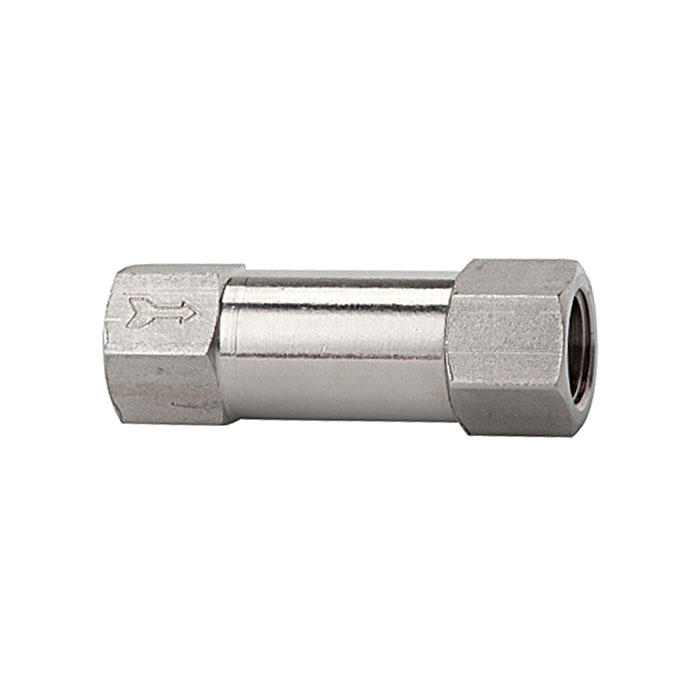

RIEGLER Check valve, Straight-way variant, Stainless steel 1.4404, G 1/4
Type number: 228.02-ES
EAN: 4047322285223
Rückschlagventil, Durchgangsform, Edelstahl 1.4404, Betriebstemp. -10 °C bis 150 °C, G 1/4, PN max. 10 bar, Öffnungsdruck 0,2 bar
| Housing | Stainless steel 1.4404 |
| Sealing material | FPM |
| Max. operating pressure | 10 bar |
| Opening pressure min. | 0.2 bar |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 150 °C |
| Spring | Stainless steel 1.4319 |
| Thread | G 1/4 |
| SW | 16 mm |
| Length | 48 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
