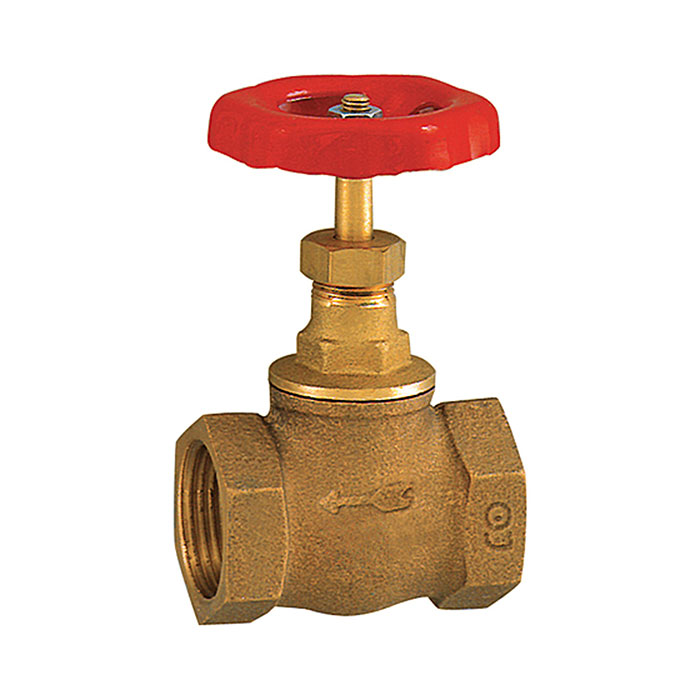

RIEGLER Bushing - blocking valve, Brass, G 1 1/2, DN 40
Typennummer: 250.55
EAN: 4047322063197
Muffen-Absperrventil, Messing, Mediumstemperatur max. 90 °C, G 1 1/2, DN 40, PN max. 10 bar
| Housing | Brass |
| Sealing material | NBR |
| Max. operating pressure | 10 bar |
| Area of application | non-aggressive liquids and vapors up to 90 °C |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 80 °C |
| Upper part | Brass |
| Thread | G 1 1/2 |
| DN | 40 |
| A | 80 mm |
| B | 128 mm |
| L | 101 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
