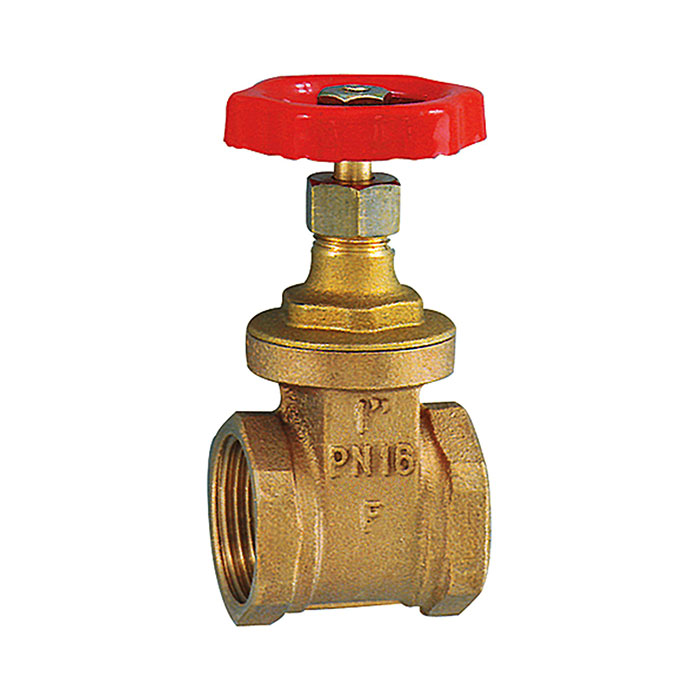

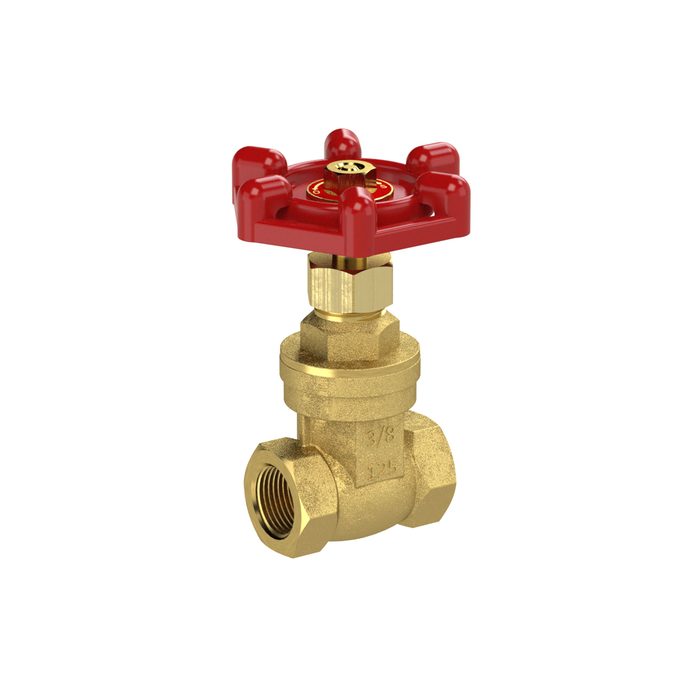

RIEGLER Bushing - locking pusher, without spindle stroke, Brass, G 3
Typennummer: 250.41
EAN: 4047322063081
Muffen-Absperrschieber, ohne Spindelhub, Messing, Mediumstemperatur max. 120°C, G 3, DN 70, PN max. 16 bar
| Housing | Brass |
| Max. operating pressure | 16 bar |
| Area of application | non-aggressive liquids, gases and vapors up to 120 °C |
| Handwheel | Aluminum |
| Spindle | Messing |
| Head piece | Brass |
| Sliding wedge | Brass |
| Stuffing box nut | Messing |
| Thread | G 3 |
| DN | 70 |
| A | 115 mm |
| B | 261 mm |
| L | 97 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | FLEX |
