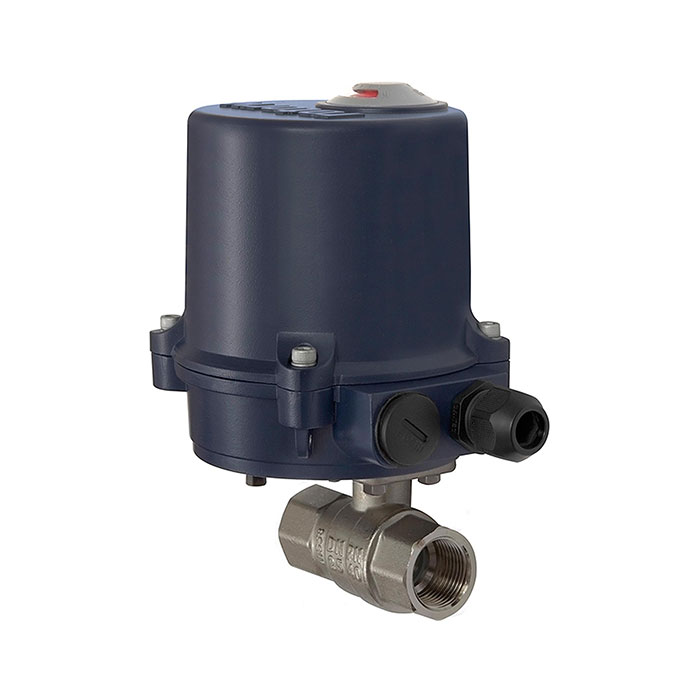

Brass ball valve, Electrical actuation drive, 24 V DC, Rp 1 1/4
Typennummer: 350.2813R
EAN: 4047322339254
2-Wege-Messingkugelhahn, elektr. Stellantrieb, 24 V DC, Betriebstemperatur -20 °C bis 70 °C, Rp 1 1/4, DN 32, PN max. 40 bar
| Housing | Aluminium pulverbeschichtet |
| Duty cycle | 0.3 |
| Protection class | IP 68 |
| Ambient temperature min. | -30 °C |
| Ambient temperature max. | 70 °C |
| Material | Messing vernickelt |
| Ball | Messing hartverchromt |
| Ball seal | PTFE, glasfaserverstärkt |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 70 °C |
| Position indicator | manuelle Handnotbetätigung |
| Shift shaft | Messing hartverchromt |
| Shift shaft seal | FKM |
| Air humidity | 30 % bis 95 % |
| Mounting flange | ISO 5211 |
| Thread | Rp 1 1/4 |
| DN | 32 |
| SW | 50 mm |
| PN | 40 bar |
| Operating time | 20 sec. |
| Tension | 24 VDC |
| A | 153 mm |
| B | 181.5 mm |
| D | 30 mm |
| L | 110 mm |
| REACH SVHC1 Substance Name | Blei |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS konform |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Artikel 4, Absatz 1, Anhang 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | enthält SVHC Stoff |
| Share of SVHC SCIP | >= 1,0% w/w und < 10,0% w/w |
| Proportion of SVHC substance in SCIP | >= 0,1 % in w/w |
| Material identification | keine |
| Class name | PLUS |
