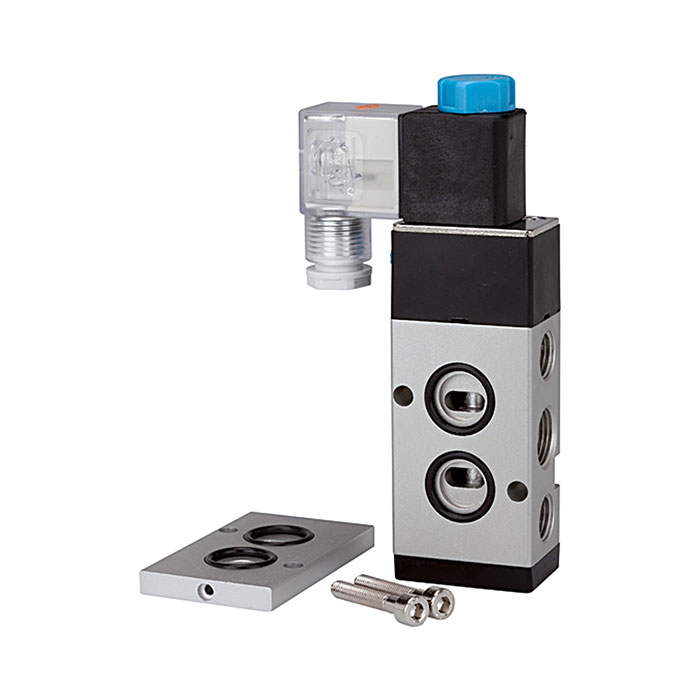

RIEGLER 3/2-5/2-way valve, NAMUR, G 3/8 (1), G 1/4 (3 + 5), 24 V DC
Typennummer: 552.04
EAN: 4047322268936
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-5/2-way valve, NAMUR, aluminum, operating temp. -5°C to 50°C, operating pressure 1.5-8 bar, connection G 3/8 (1), G 1/4 (3 + 5), 24 V DC
| Medium | Air, neutral gases (filtered) |
| Housing | Aluminum |
| Sealing material | NBR |
| Electrical connection | Device plug PG 9 with LED display |
| Working pressure min. | 1.5 bar |
| Working pressure max. | 8 bar |
| Operating temperature min. | -5 °C |
| Operating temperature max. | 50 °C |
| Manual override | latching/touching |
| Flow rate | 1650 l/min |
| DN | 10 |
| Connection | G 3/8 |
| Connection | G 1/4 |
| Connection | G 1/4 |
| Tension | 24 V DC |
| Class name | EASY |
