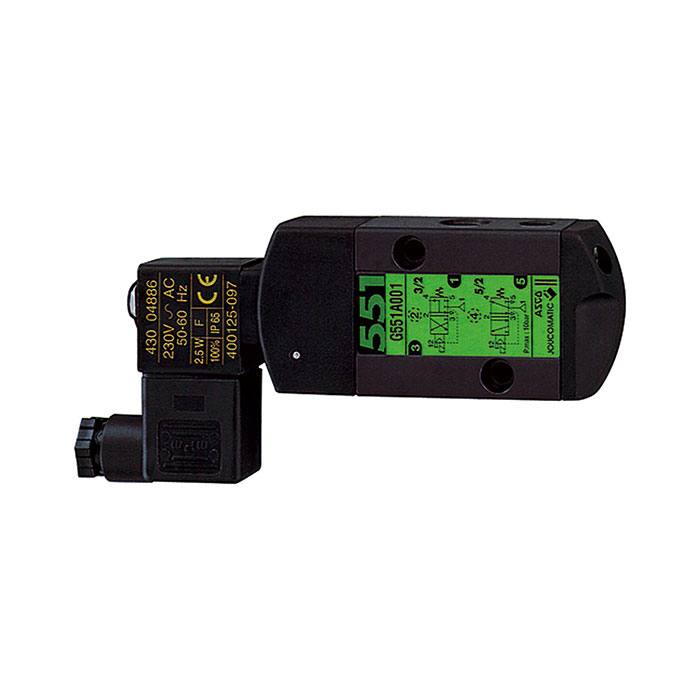

RIEGLER 3/2-5/2-way valve, NAMUR, G 1/4 (1), G 1/8 (3+5), 24 V DC
Typennummer: 551.02
EAN: 4047322100472
Riegler
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-5/2-way valve, NAMUR, anodized aluminium, operating temp. -25°C to 60°C, differential pressure 2-10 bar, G 1/4 (1), G 1/8 (3+5), 24 V DC
| Medium | Air, neutral gases (filtered) |
| Housing | Aluminium, black anodized |
| Sealing material | NBR and PUR |
| Electrical connection | Cable plug PG 9P, 3 x DIN 46244 / VDE 0580 |
| Operating temperature min. | -25 °C |
| Operating temperature max. | 60 °C |
| Differential pressure min. | 2 bar |
| Differential pressure max. | 10 bar |
| Permissible static pressure max. | 10 bar |
| Manual override | resting |
| Flow rate | 700 l/min |
| DN | 6 |
| Tension | 24 V DC |
| Connection | G 1/4 (connection 1), G 1/8 (connection 3 and 5) |
| Class name | MAX |
